Single use Products

SCROLL DOWN

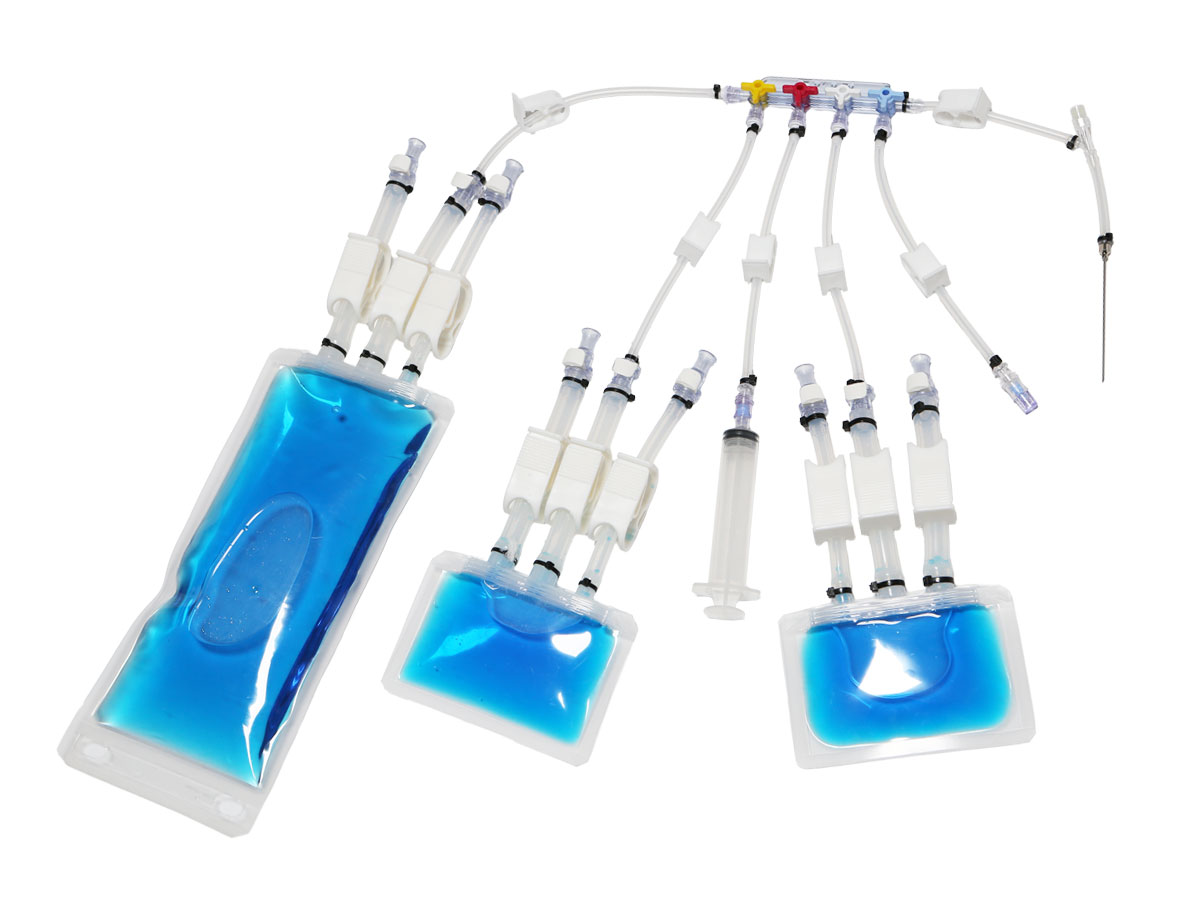

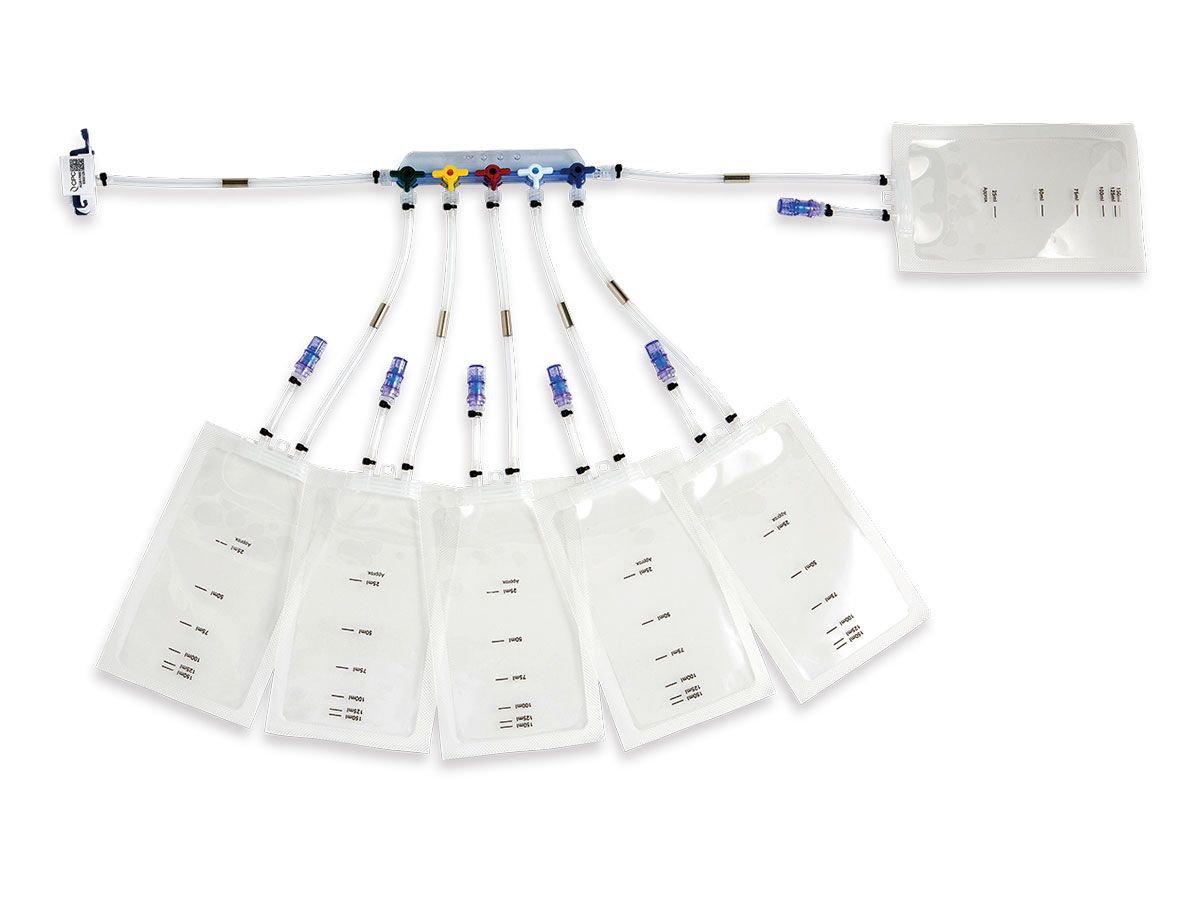

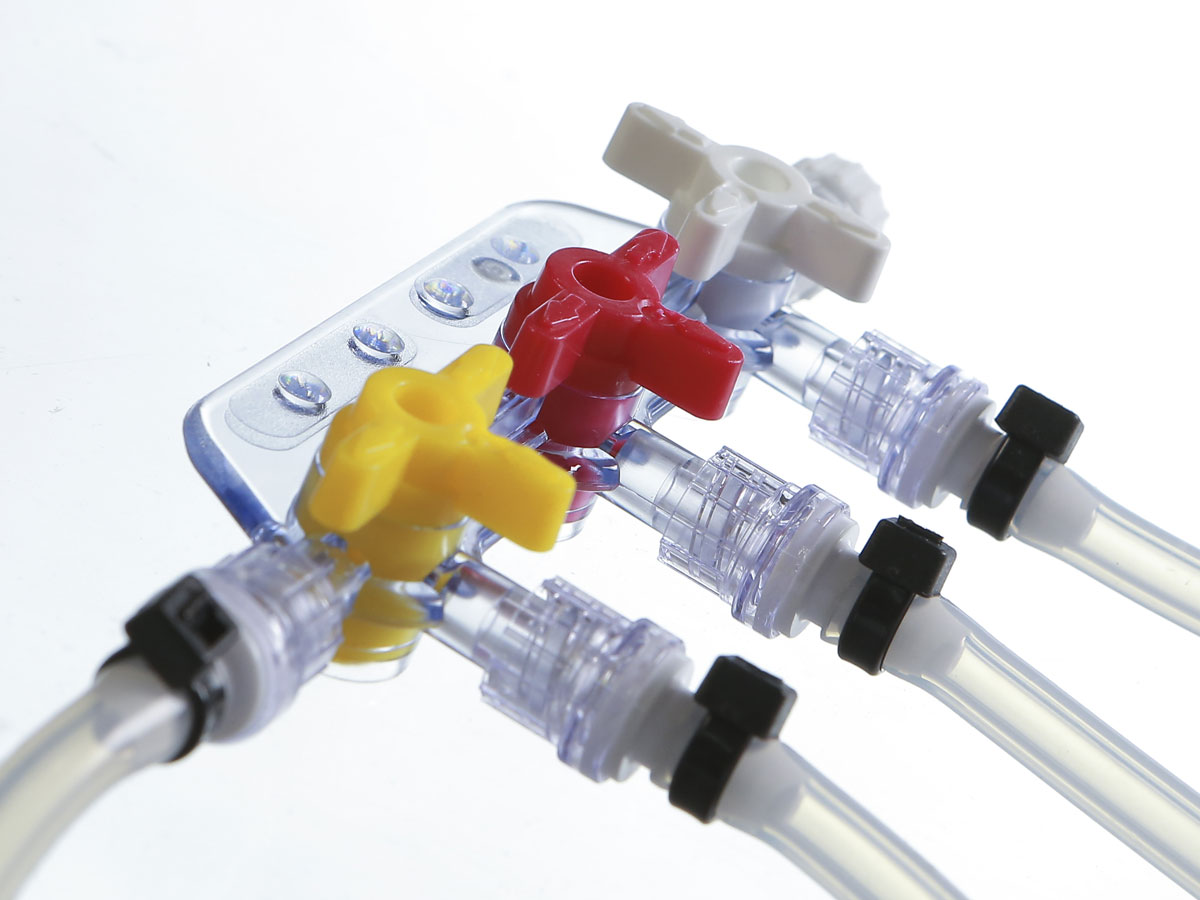

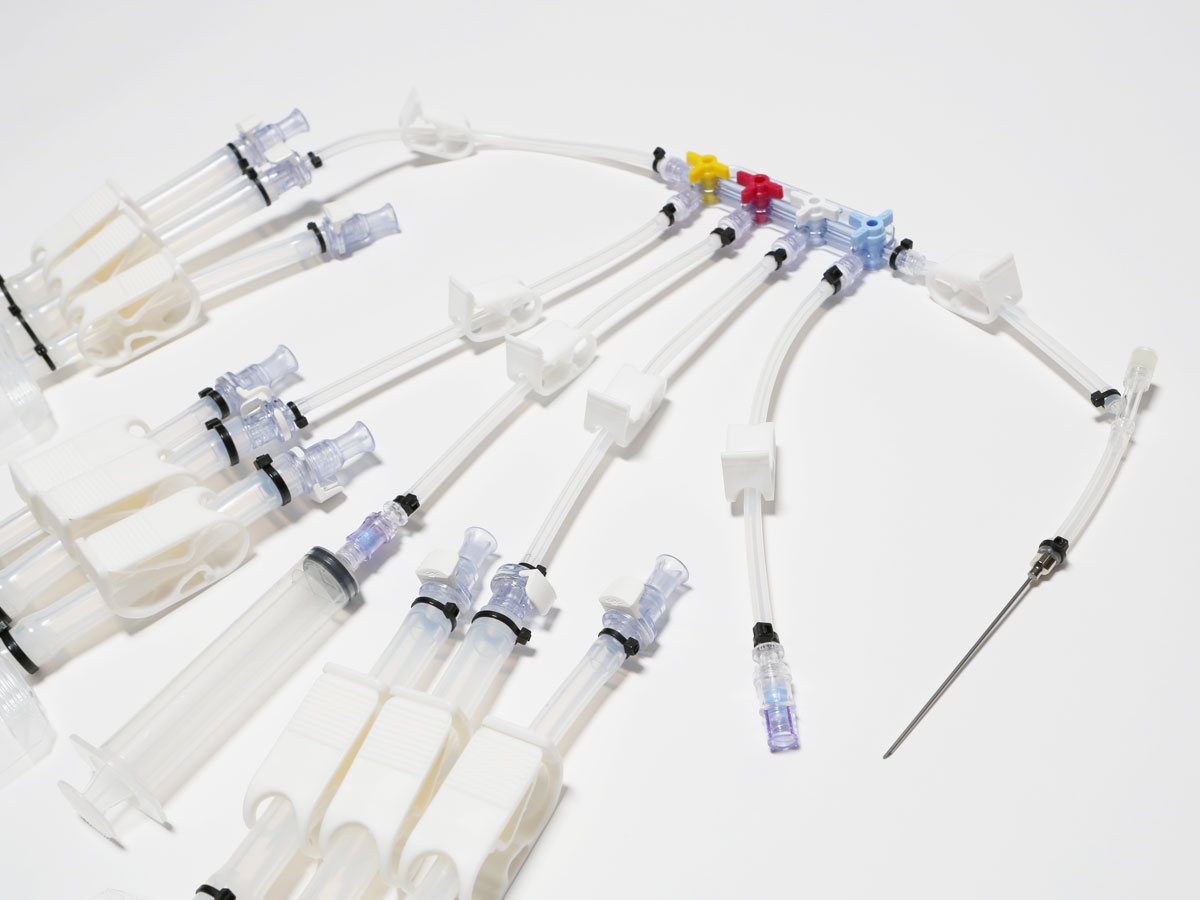

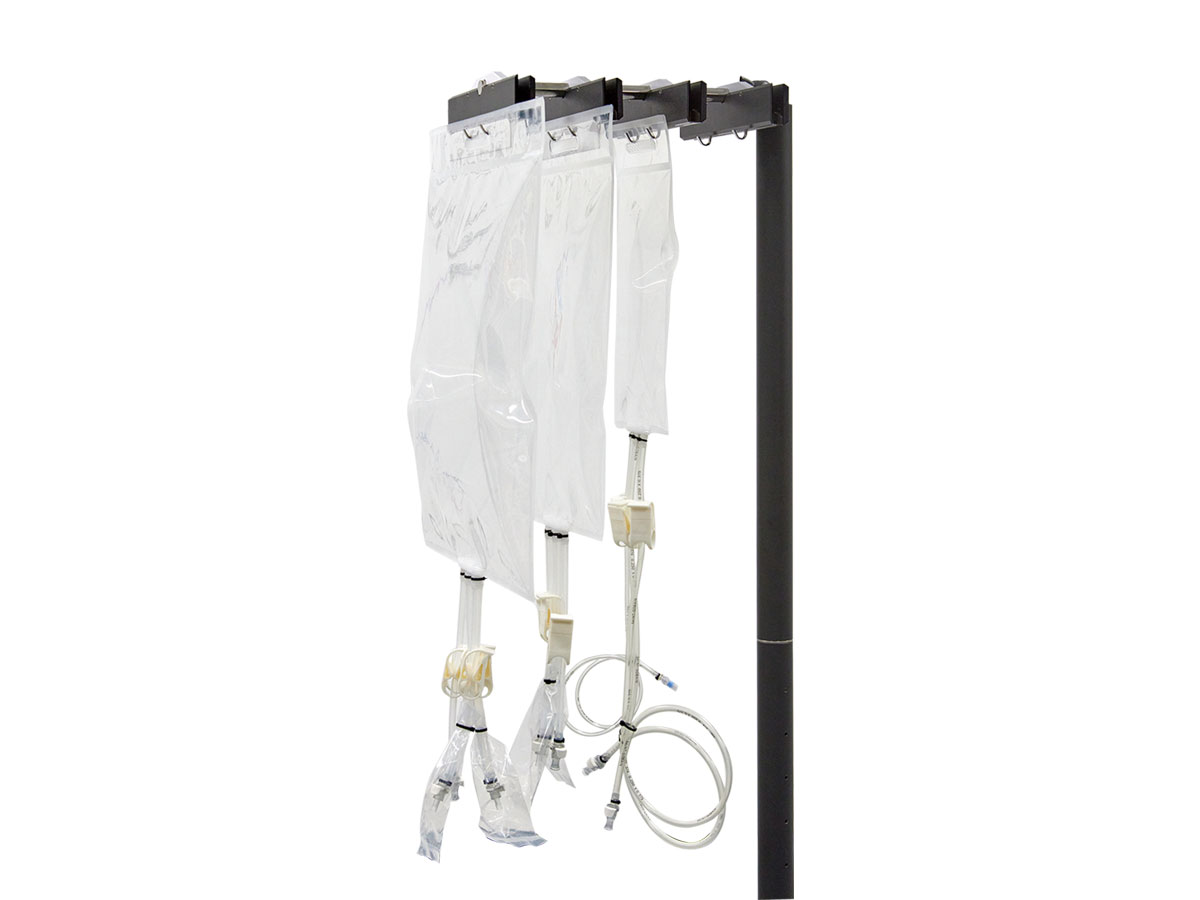

Single use Sampling bag & Manifolds

The Single-use Sampling Bag & Manifolds are developed and manufactured using Renolit PE film (Contact layer: ULDPE), with volumes ranging from 150 mL to 1 L.
We also provide customized manufacturing services for transfer lines, tailored to on-site process requirements.

Applications

  • Customizable configuration (tubing size, lengths & connectors)
  • Supports Aseptic connection
  • Number of bags in the sampling manifold can be configured according to user requirements

Production

  • Clean Room Class 7 (10,000)
  • ISO 13485:2016 Certified
  • USP <85> Bacterial Endotoxins
  • USP <87> Biological Reactivity Tests – In Vitro
  • USP <88> Biological Reactivity Tests – In Vivo
  • Gamma irradiation: 25 kGy ~ 40 kGy
  • Extractable package available upon request
  • Double PE bag packaging (vacuum sealed)

Specification Data
Ecell-Single-use-v1_Catalog.pdf

Product No. Volume(mL)
EMS0150ECS01 150mL
EMS0250ECS01 250mL
EMS0500ECS01 500mL

Standard configuration.

  • Port 1: Platinum-cured silicone tubing, 1/8″x1/4″, 50mm – 1 x luer connector + needlefree swabable valve + cap
  • Port 2: Platinum-cured silicone tubing, 1/8″x1/4″, 200mm & Pinch Pipe
  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

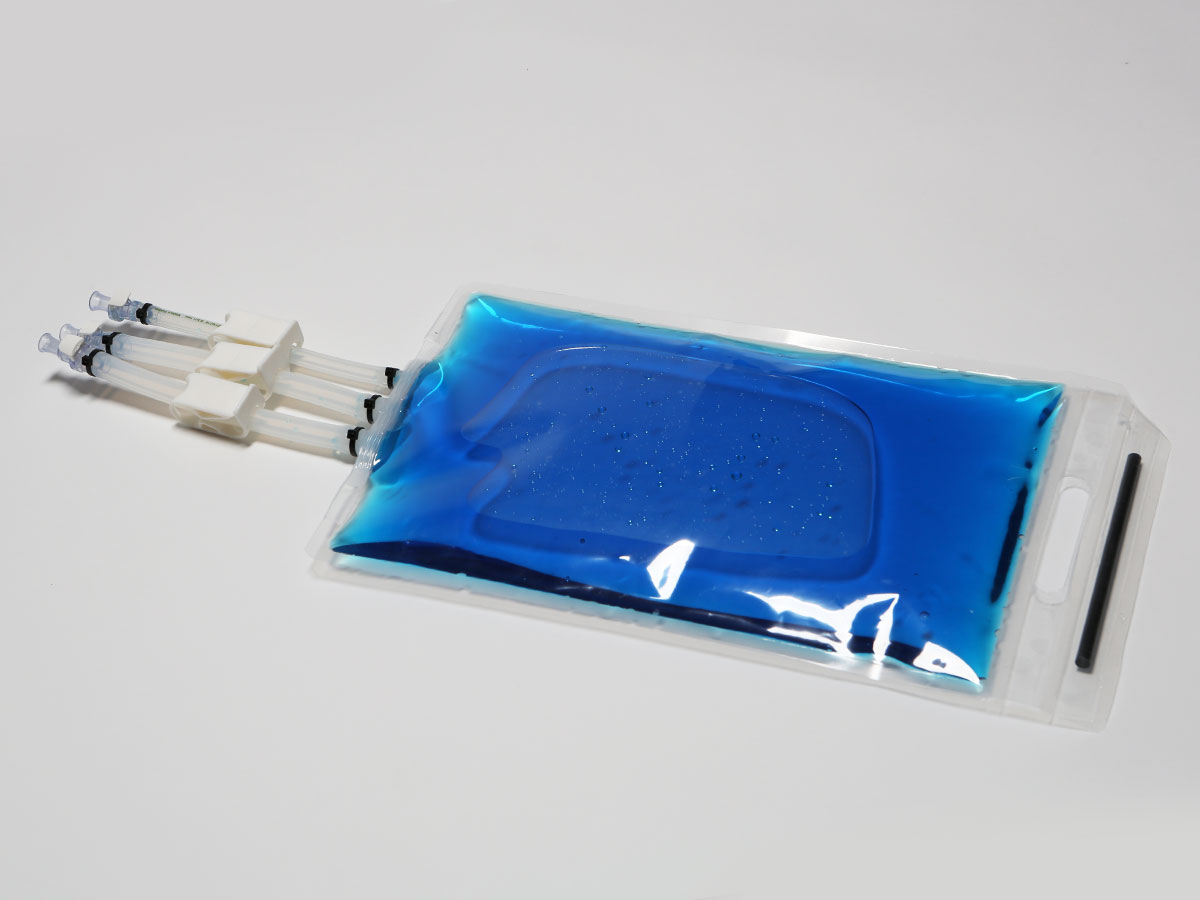

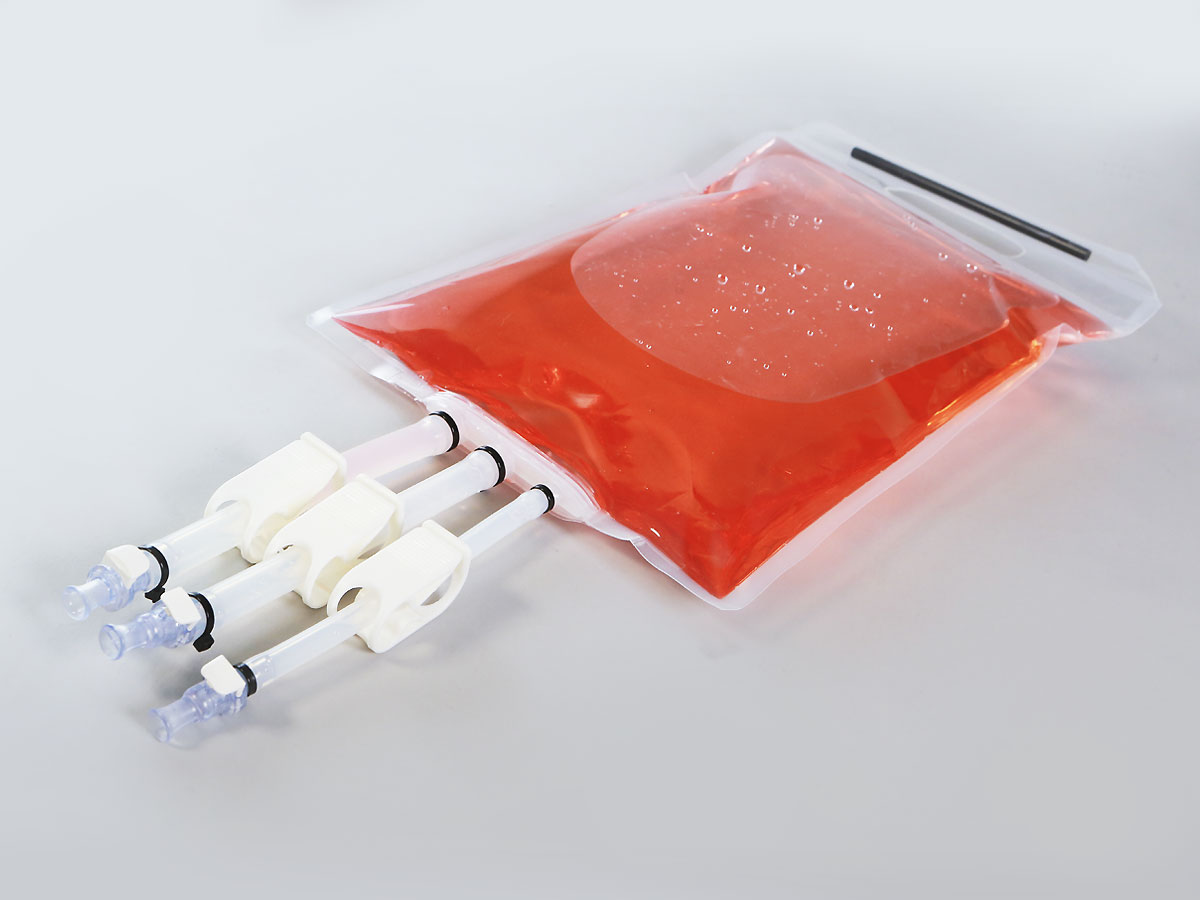

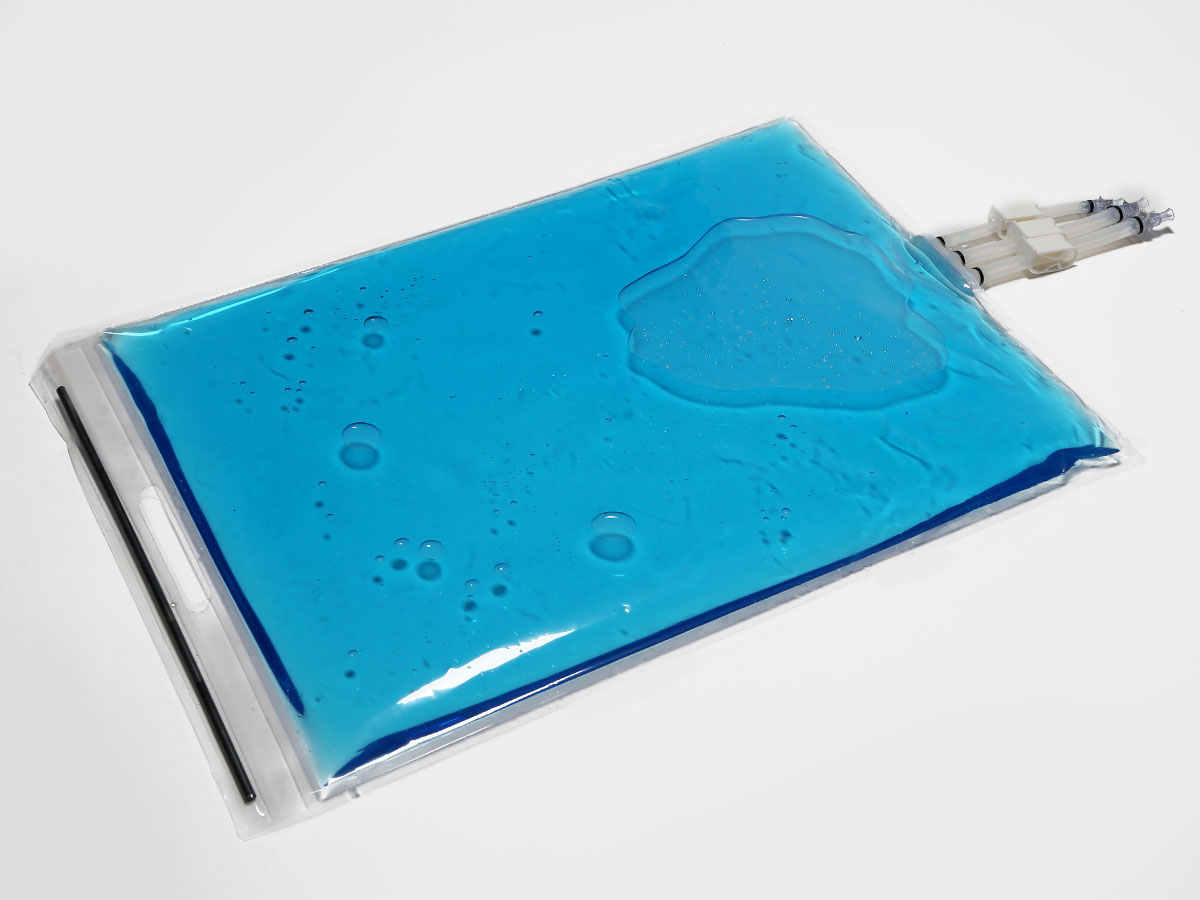

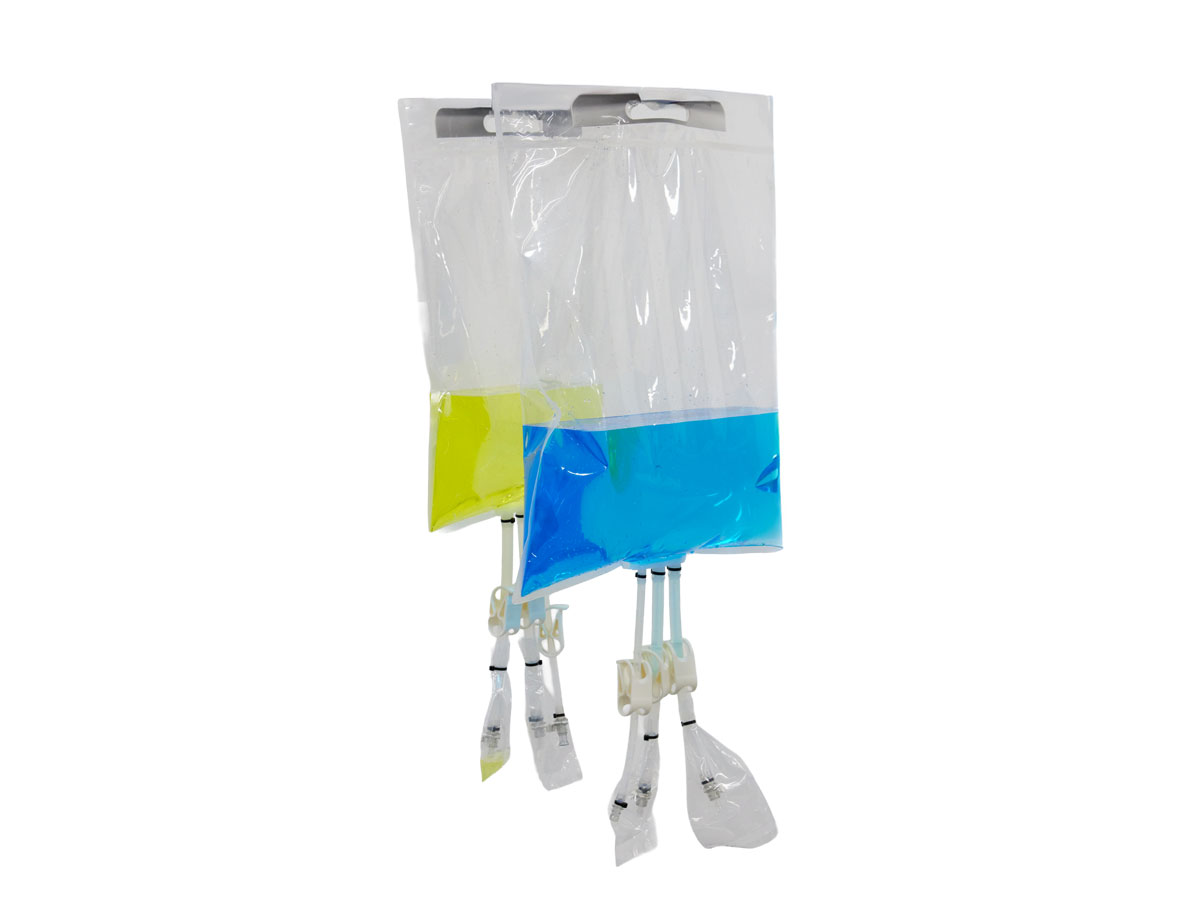

Single use Bag 2D

The Single-use 2D Bag is developed and manufactured using Renolit PE film (Contact layer: ULDPE), with volumes ranging from 150 mL to 50 L.
We also provide customized manufacturing services for components, tailored to on-site process requirements.

Applications

  • Storage and transport of media/buffers
  • Storage and transport of raw materials/additives
  • Customizable configuration (tubing size, lengths & connectors)
  • Can be connected via sampling manifold

Production

  • Clean Room Class 7 (10,000)
  • ISO 13485:2016 Certified
  • USP <85> Bacterial Endotoxins
  • USP <87> Biological Reactivity Tests – In Vitro
  • USP <88> Biological Reactivity Tests – In Vivo
  • Gamma irradiation: 25 kGy ~ 40 kGy
  • Extractable package available upon request
  • Double PE bag packaging (vacuum sealed)

Specification Data
Ecell-Single-use-v1_Catalog.pdf

Product No. Volume(mL, L)
ESD0150CECS01 150mL
ESD0250CECS01 250mL
ESD0500CECS01 500mL
ESD8401ECS01 1L
ESD8402ECS01 2L
ESD8405ECS01 5L
ESD4810ECS01 10L
ESD4820ECS01 20L
ESD4850ECS01 50L

Standard configuration.

  • [Volume 150ml ~ 500ml]
  • Port 1: Platinum-cured silicone tubing, ID 1/8” x OD1/4”, 150mm & Pinch clamp, 1 x MPC coupling + cap
  • Port 2: Platinum-cured silicone tubing, ID 1/8” x OD1/4”, 150mm & Pinch clamp, 1 x MPC coupling + cap
  • [Volume : 1 ~ 5L]
  • Port 1: Platinum-cured silicone tubing, ID1/8″ x OD1/4″, 150mm & Pinch clamp, 1 x luer connector + needlefree swabable valve + cap
  • Port 2: Platinum-cured silicone tubing, ID1/4″ x OD3/8″, 150mm & Pinch clamp,1 x MPC coupling insert + cap
  • Port 3: Platinum-cured silicone tubing, ID1/4″ x OD3/8″, 150mm & Pinch clamp, 1 x MPC coupling insert + cap
  • [Volume : 10 ~ 50L]
  • Port 1: Platinum-cured silicone tubing, ID1/4″ x OD3/8″, 150mm & Pinch clamp, 1 x luer connector + needlefree swabable valve + cap
  • Port 2: Platinum-cured silicone tubing, ID3/8″ x OD5/8″, 150mm & Pinch clamp, 1 x MPC coupling insert + cap
  • Port 3: Platinum-cured silicone tubing, ID3/8″ x OD5/8″, 150mm & Pinch clamp, 1 x MPC coupling insert + cap
  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

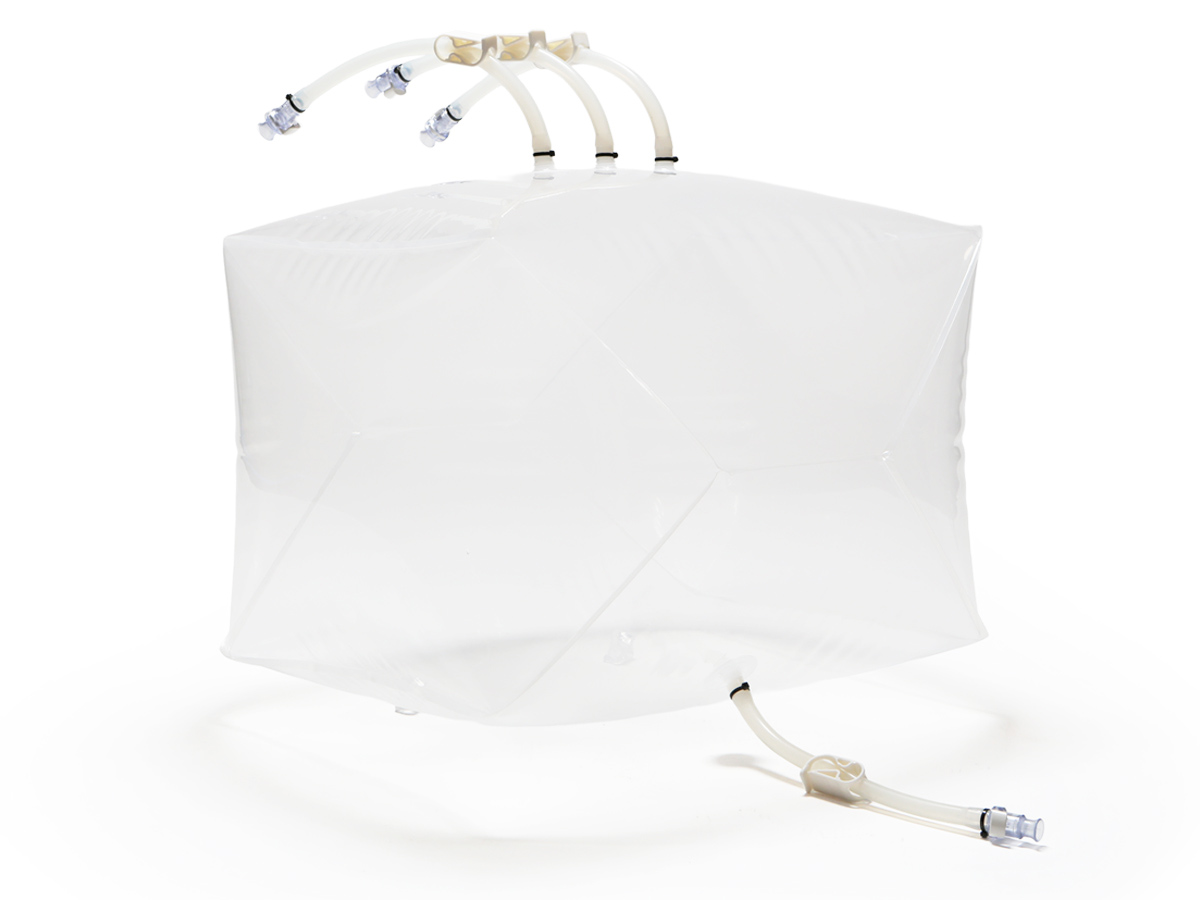

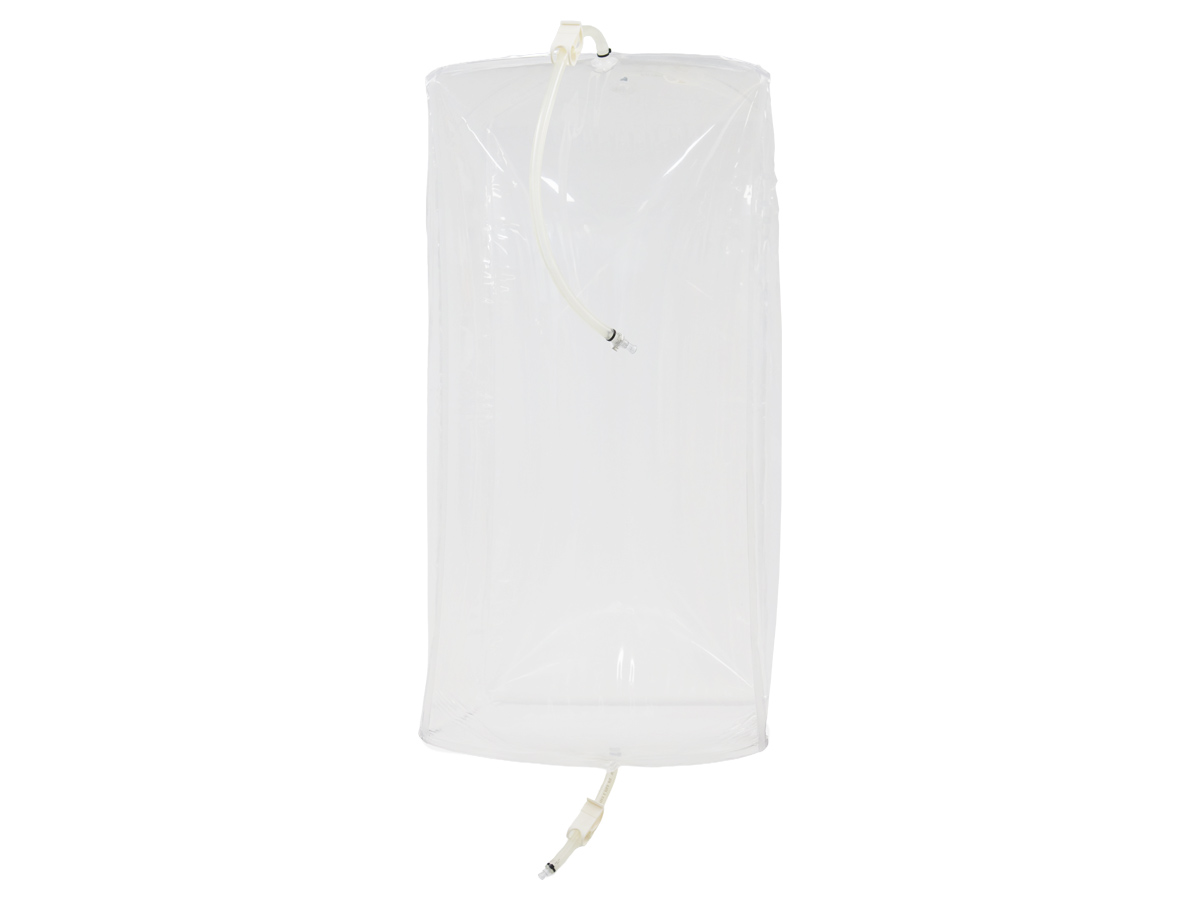

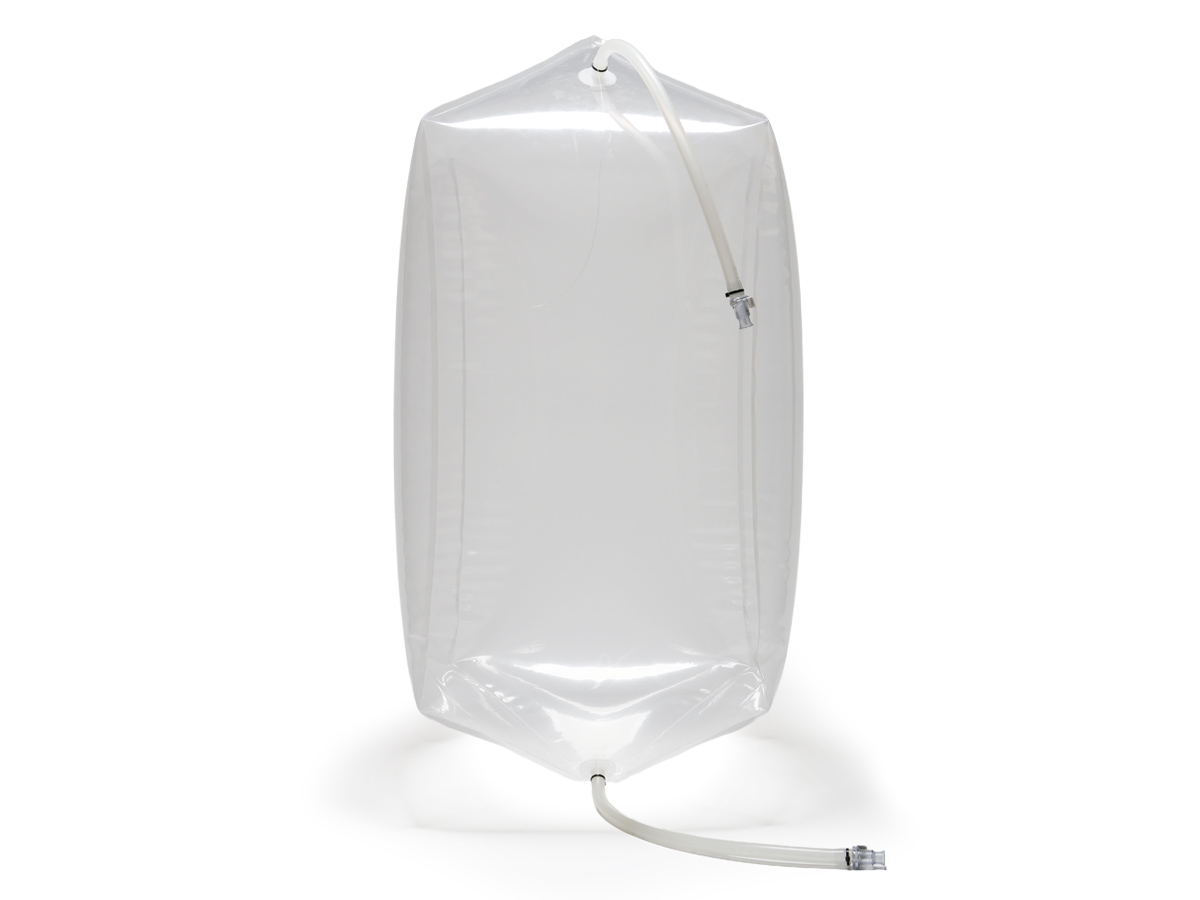

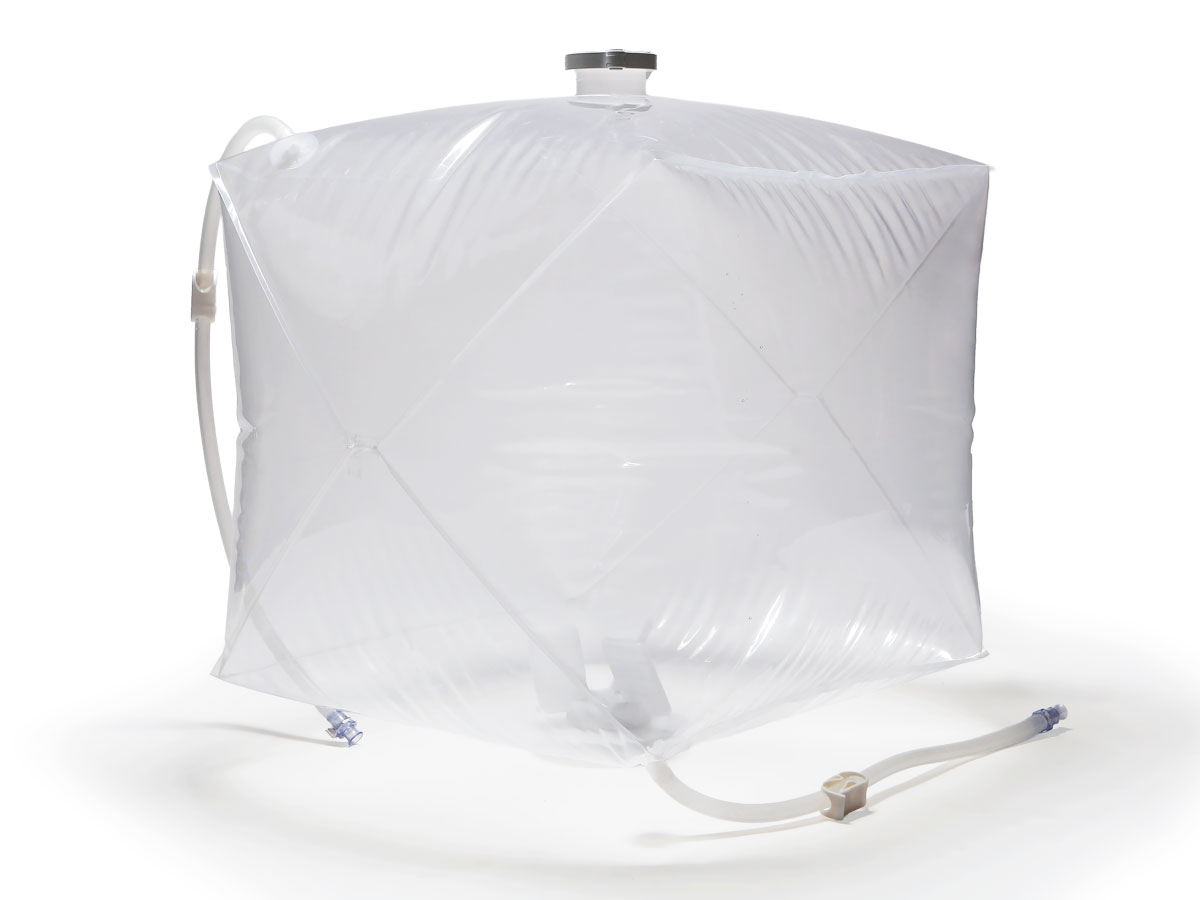

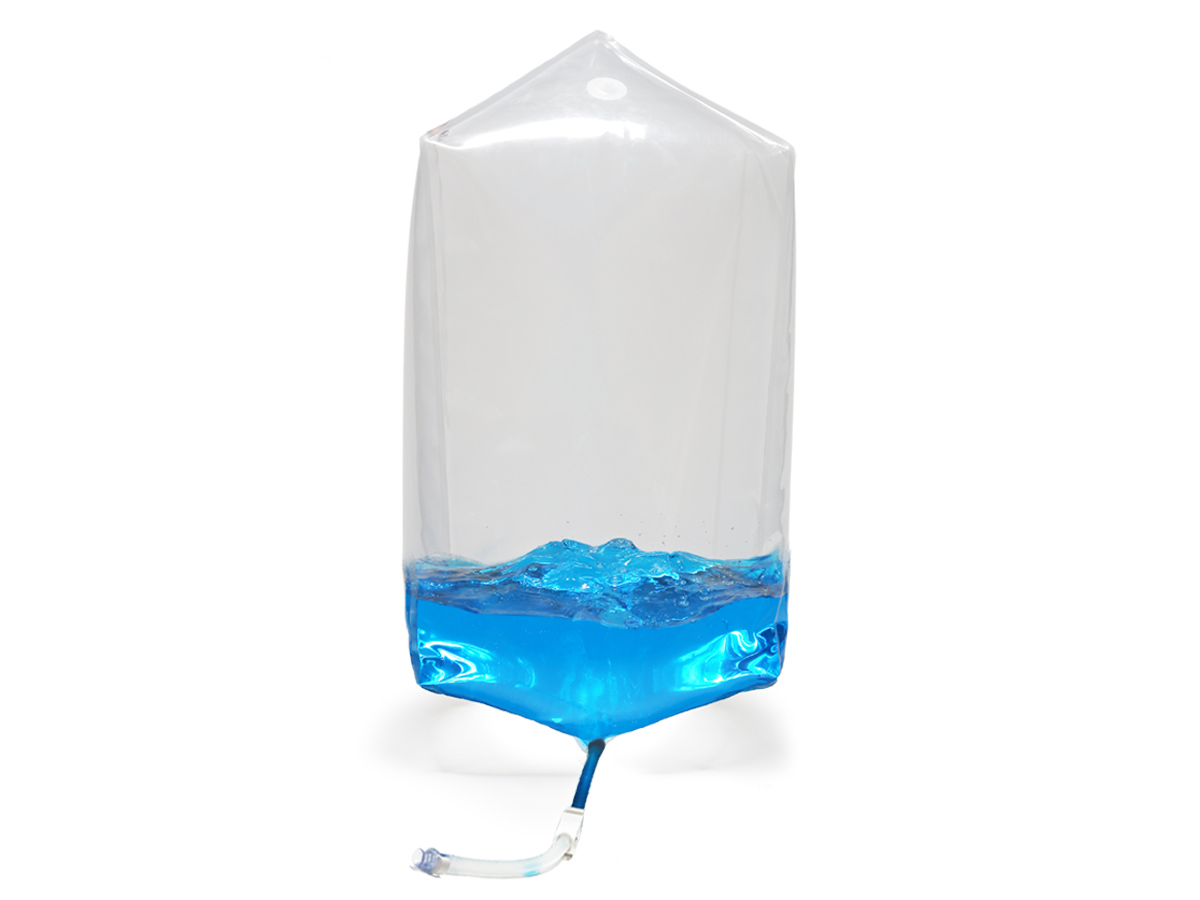

Single use Bag 3D (Vertical)

The Single-use 3D Bag is developed and manufactured using Renolit PE film (Contact layer: ULDPE), with volumes ranging from 50 L to 1,000 L.
We also provide customized manufacturing services for container port locations and components, tailored to on-site process requirements.

Applications

  • Storage and transport of media/buffers
  • Storage and transport of raw materials/additives
  • Customizable configuration (tubing size, lengths & connectors)
  • Supports aseptic connection
  • Transfer line can be custom-designed

Production

  • Clean Room Class 7 (10,000)
  • ISO 13485:2016 Certified
  • USP <85> Bacterial Endotoxins
  • USP <87> Biological Reactivity Tests – In Vitro
  • USP <88> Biological Reactivity Tests – In Vivo
  • Gamma irradiation: 25 kGy ~ 40 kGy
  • Extractable package available upon request
  • Double PE bag packaging (vacuum sealed)

Specification Data
Ecell-Single-use-v1_Catalog.pdf

Product No. Volume(L)
ESP0050ECS01 50L
ESP0100ECS01 100L
ESP0200ECS01 200L
ESP0500ECS01 500L
ESP1000ECS01 1000L

Standard configuration.

  • Port 1 (Top): Platinum-cured silicone tubing, ID 3/8” x OD 5/8”, 500mm & Pinch clamp, 1 x MPC coupling + cap
  • Port 2 (Bottom): Platinum-cured silicone tubing, ID 3/8” x OD 5/8”, 1000mm & Pinch clamp, 1 x MPC coupling + cap
  • Port 3 (Bottom, Sampling): Platinum-cured silicone tubing, ID 1/8” x OD1/4”, 200mm & Pinch clamp, 1 x luer connector + needlefree swabable valve + cap
  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

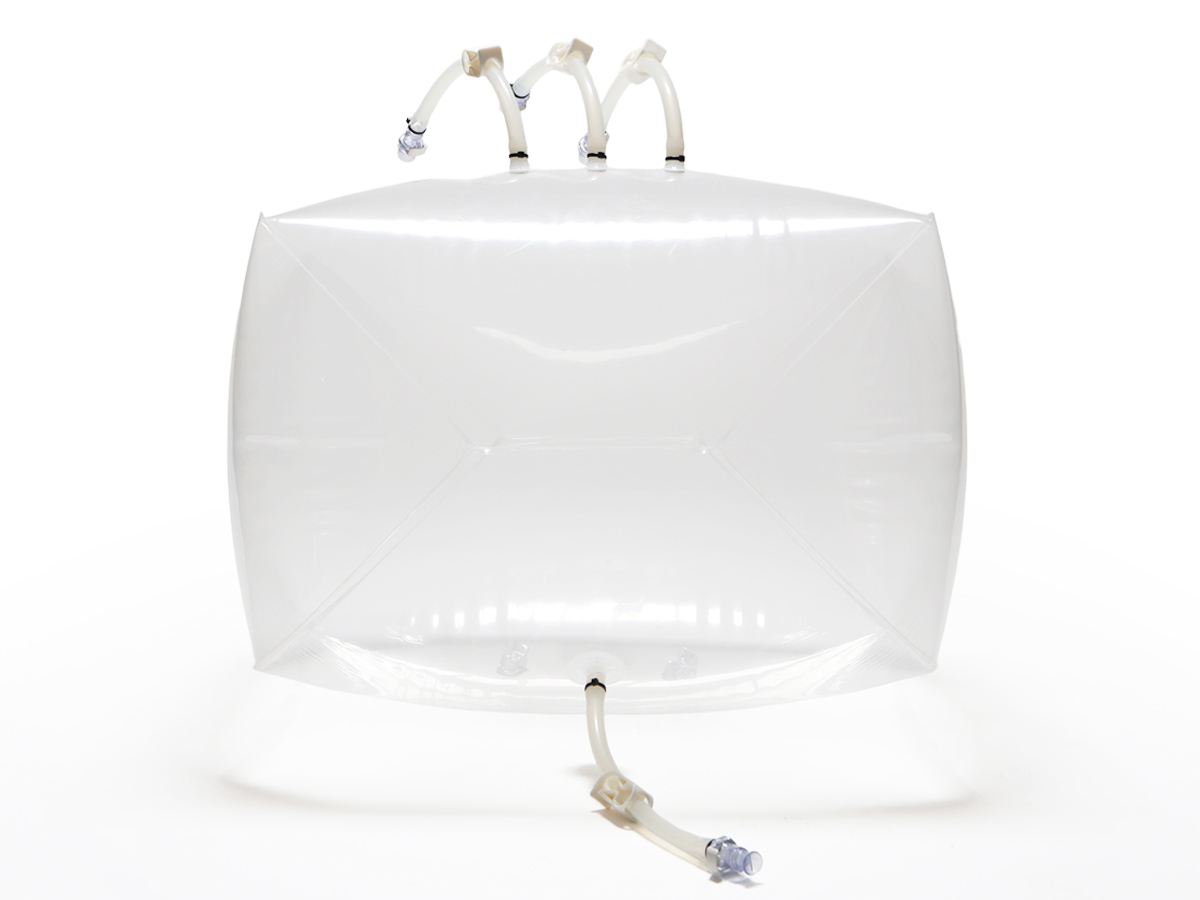

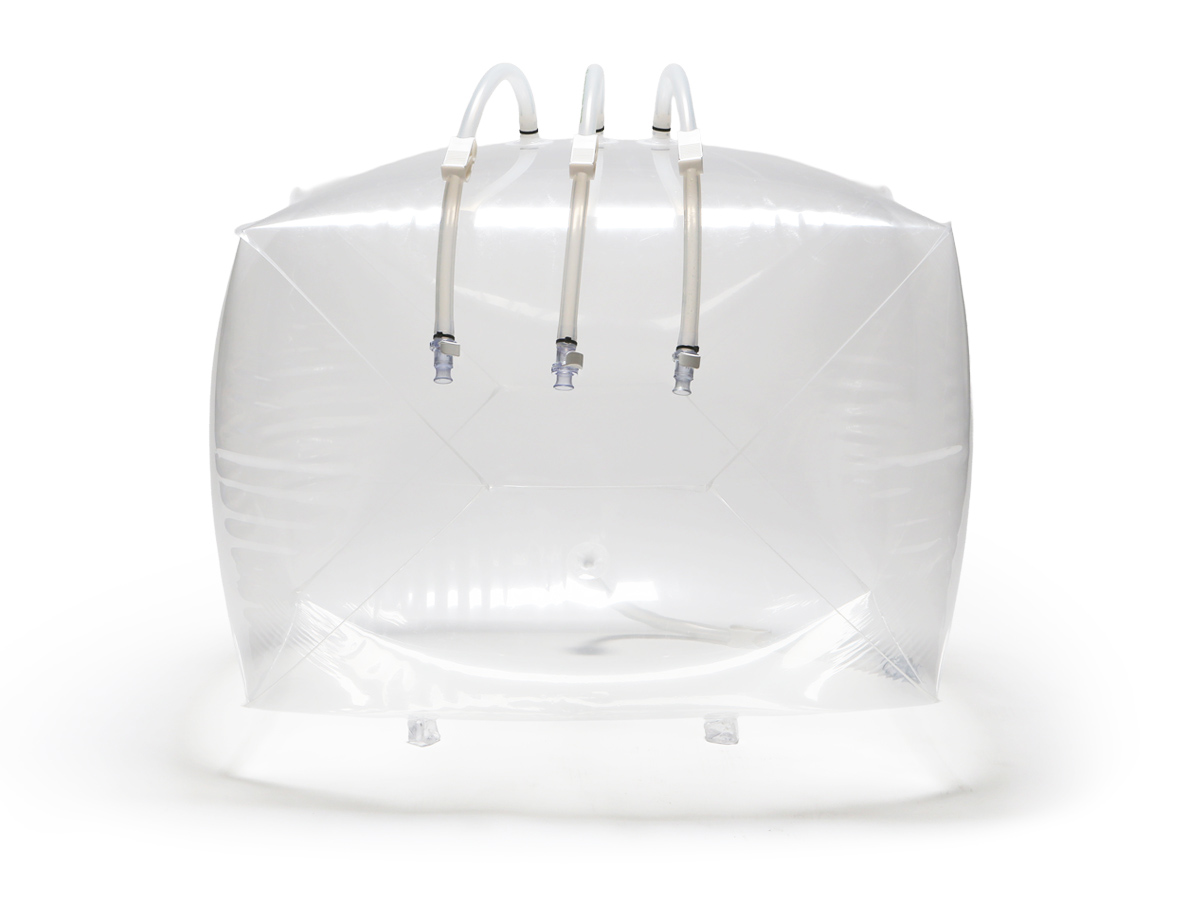

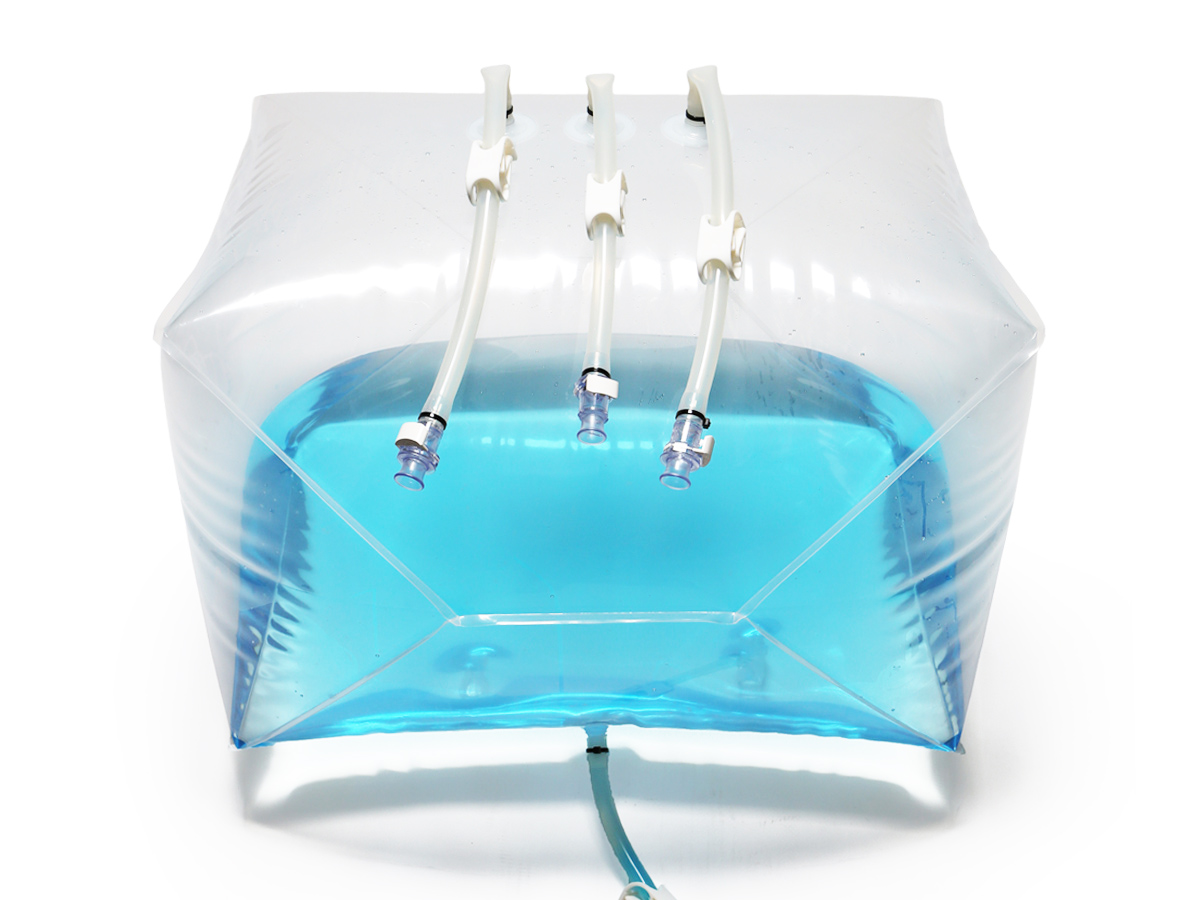

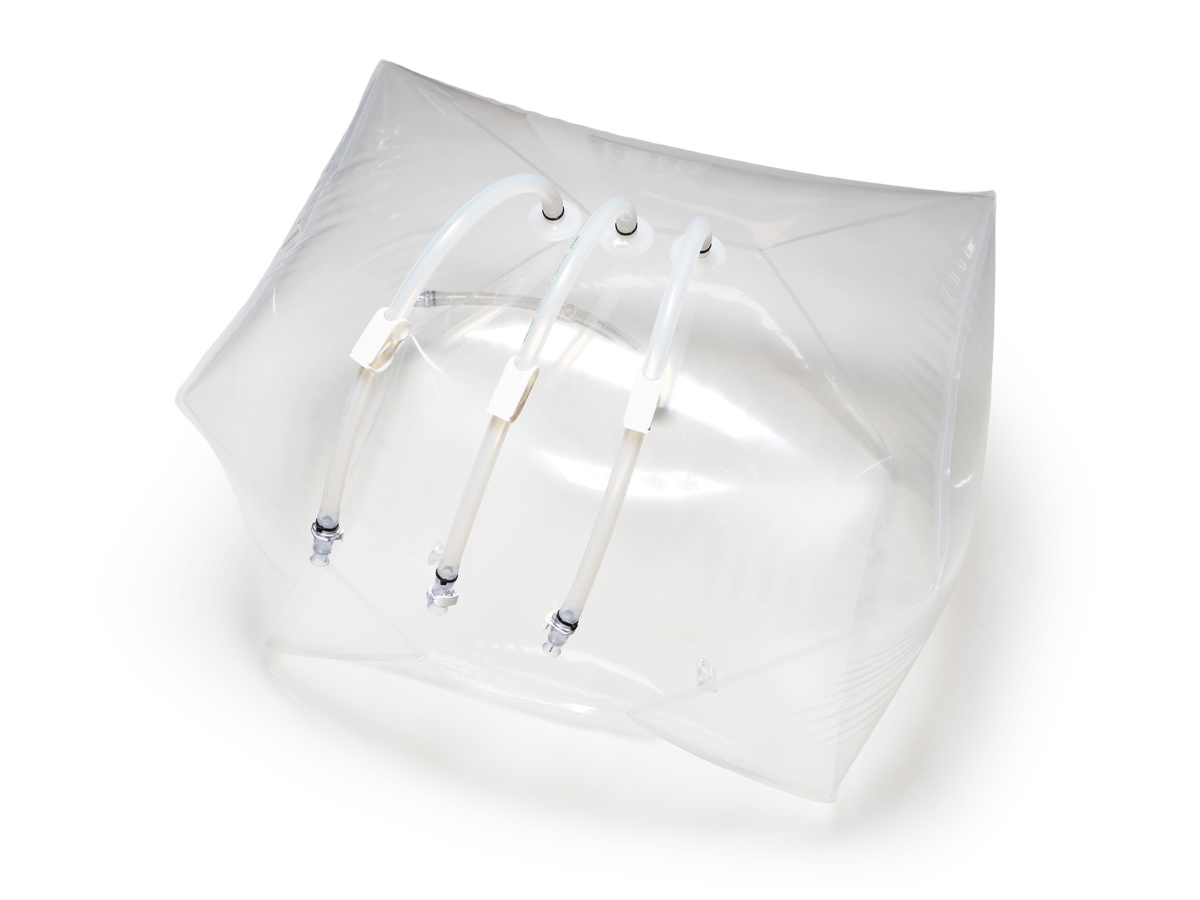

Single use Bag 3D (Horizontal)

The Single-use 3D Bag is developed and manufactured using Renolit PE film (Contact layer: ULDPE), with volumes ranging from 100 L to 1,000 L.
We also provide customized manufacturing services for container port locations and components, tailored to on-site process requirements.

Applications

  • Storage and transport of media/buffers
  • Storage and transport of raw materials/additives
  • Customizable configuration (tubing size, lengths & connectors)
  • Supports aseptic connection
  • Transfer line can be custom-designed

Production

  • Clean Room Class 7 (10,000)
  • ISO 13485:2016 Certified
  • USP <85> Bacterial Endotoxins
  • USP <87> Biological Reactivity Tests – In Vitro
  • USP <88> Biological Reactivity Tests – In Vivo
  • Gamma irradiation: 25 kGy ~ 40 kGy
  • Extractable package available upon request
  • Double PE bag packaging (vacuum sealed)

Specification Data
Ecell-Single-use-v1_Catalog.pdf

Product No. Volume(L)
ESS0100ECS01 100L
ESS0200ECS01 200L
ESS0300ECS01 300L
ESS0500ECS01 500L
ESS1000ECS01 1000L

Standard configuration.

  • Port 1 (Top): Platinum-cured silicone tubing, 1/2″x3/4″, 500mm, Pinch clamp, MPX coupling insert connector + cap
  • Port 2 (Top): Platinum-cured silicone tubing, 1/2″x3/4″, 500mm, Pinch clamp, MPX coupling insert connector + cap
  • Port 3 (Top): Platinum-cured silicone tubing, 1/2″x3/4″, 500mm, Pinch clamp, MPX coupling insert connector + cap
  • Port 4 (Bottom): Platinum-cured silicone tubing, 1/2″x3/4″, 1000mm, Pinch clamp, MPX coupling insert connector + cap
  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

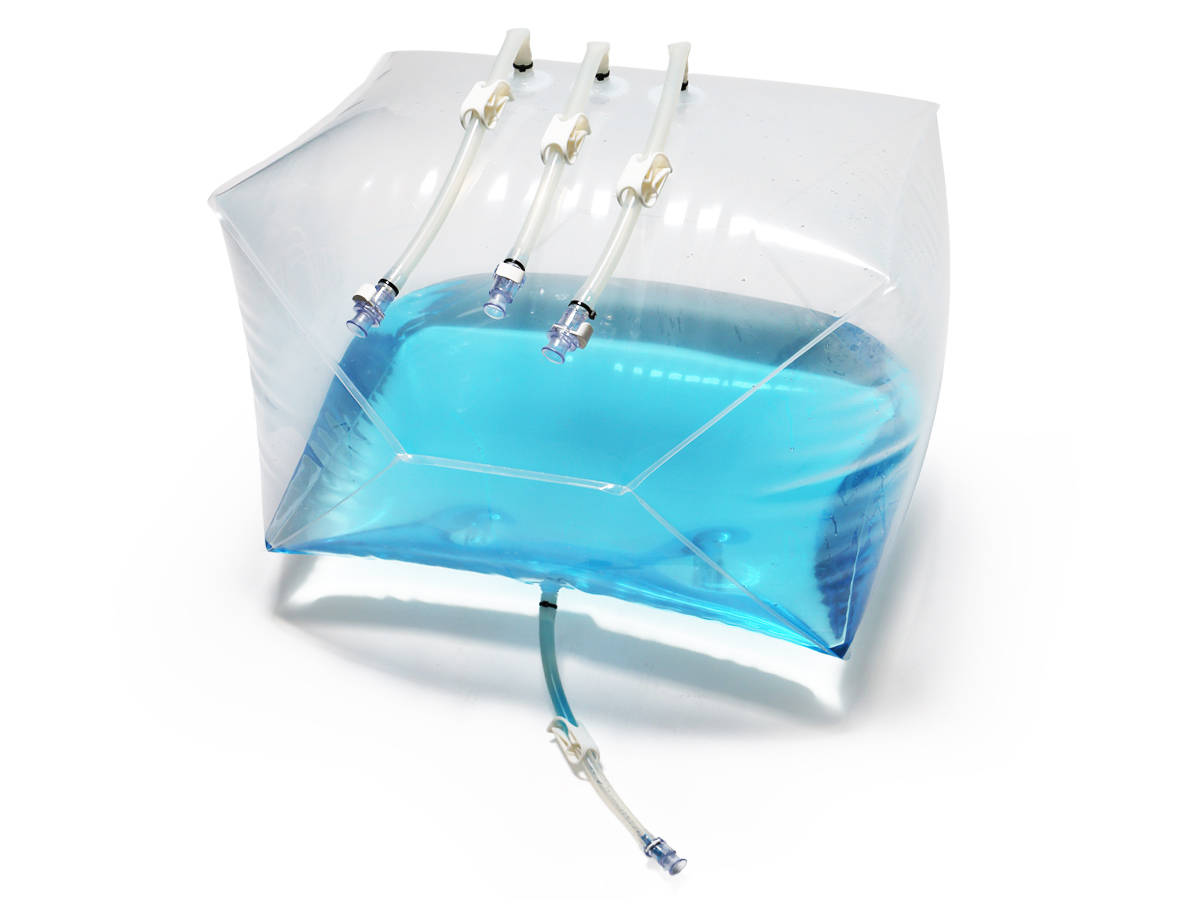

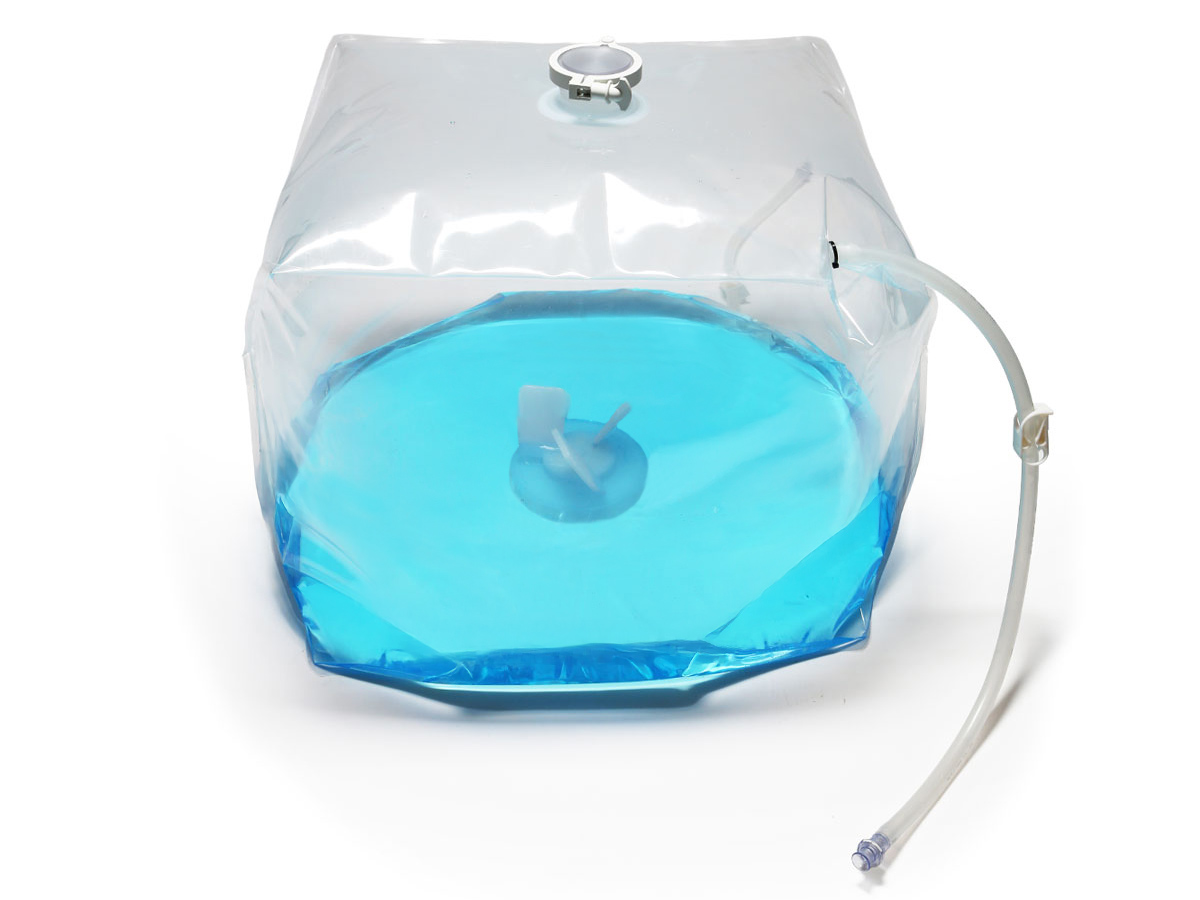

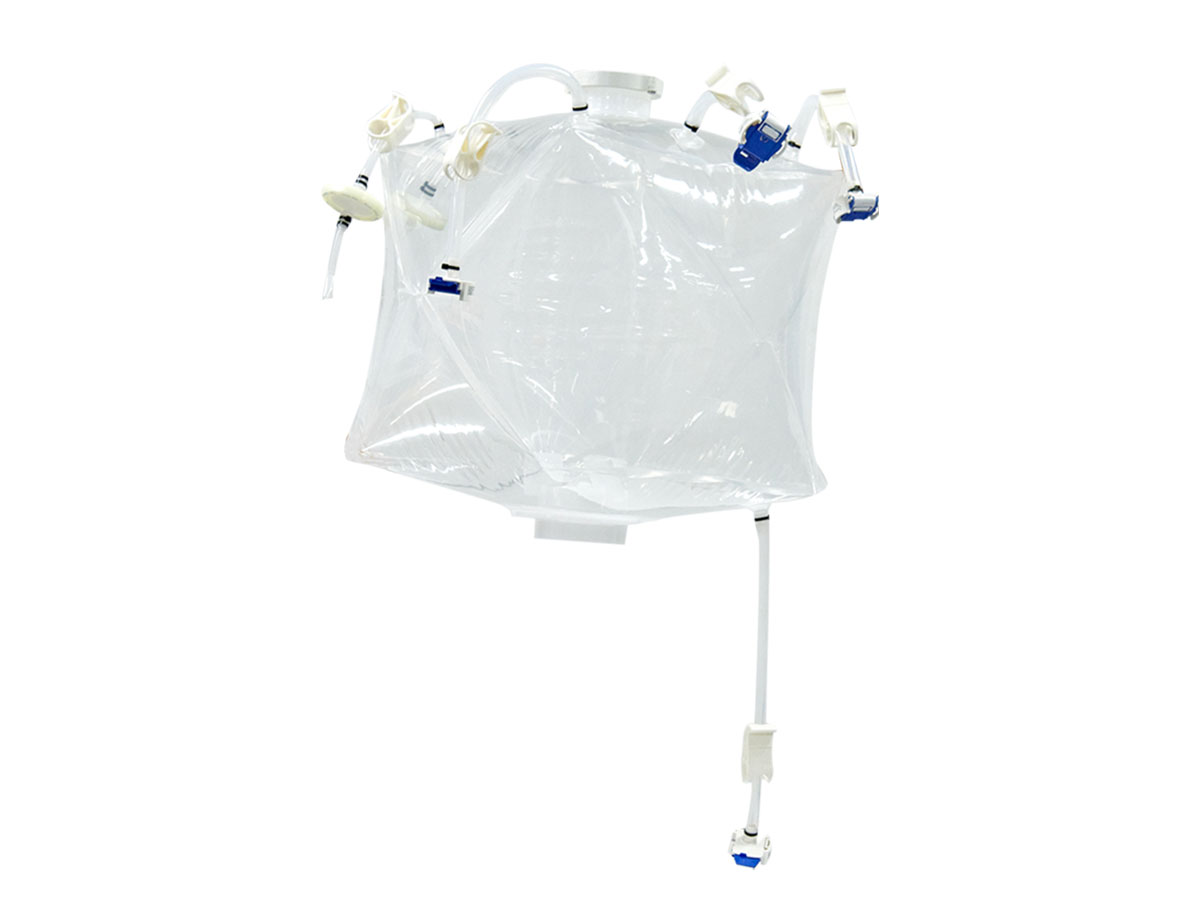

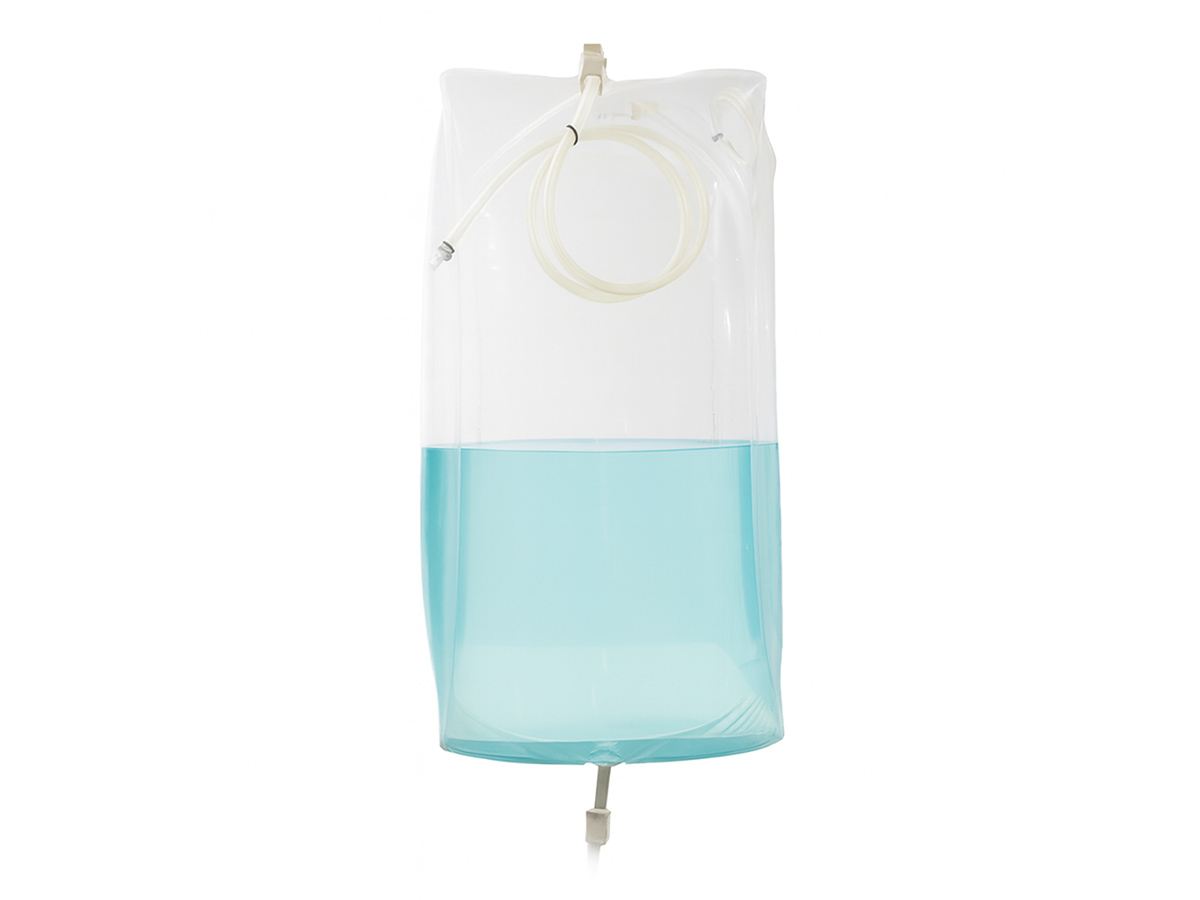

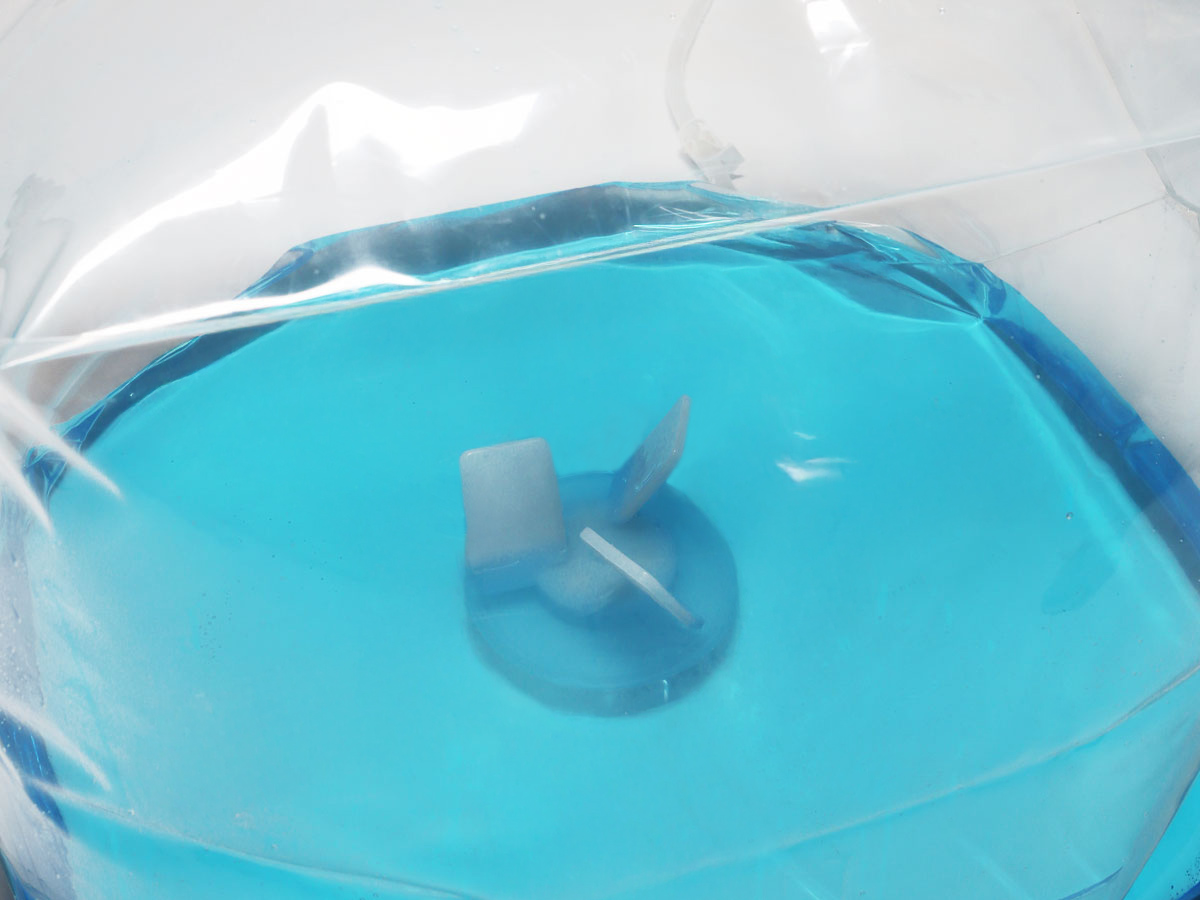

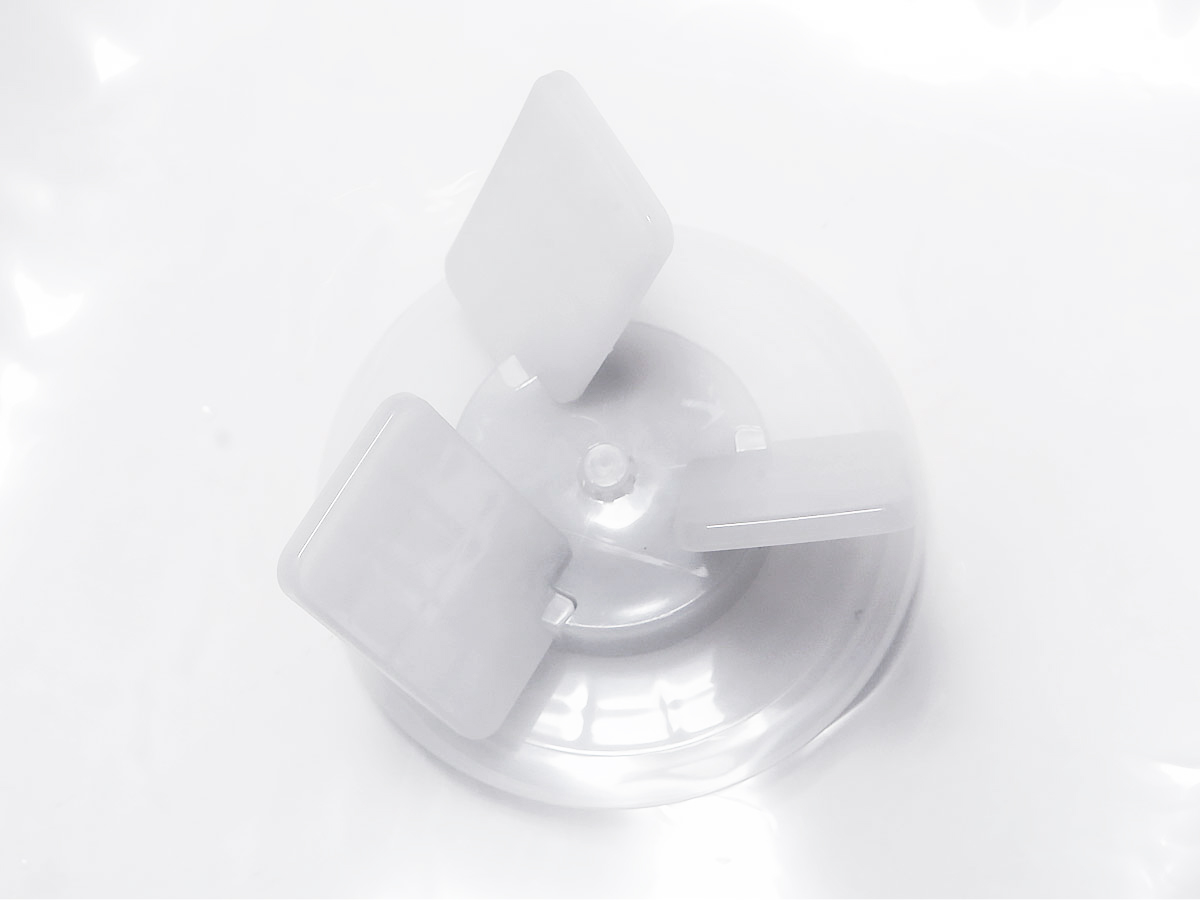

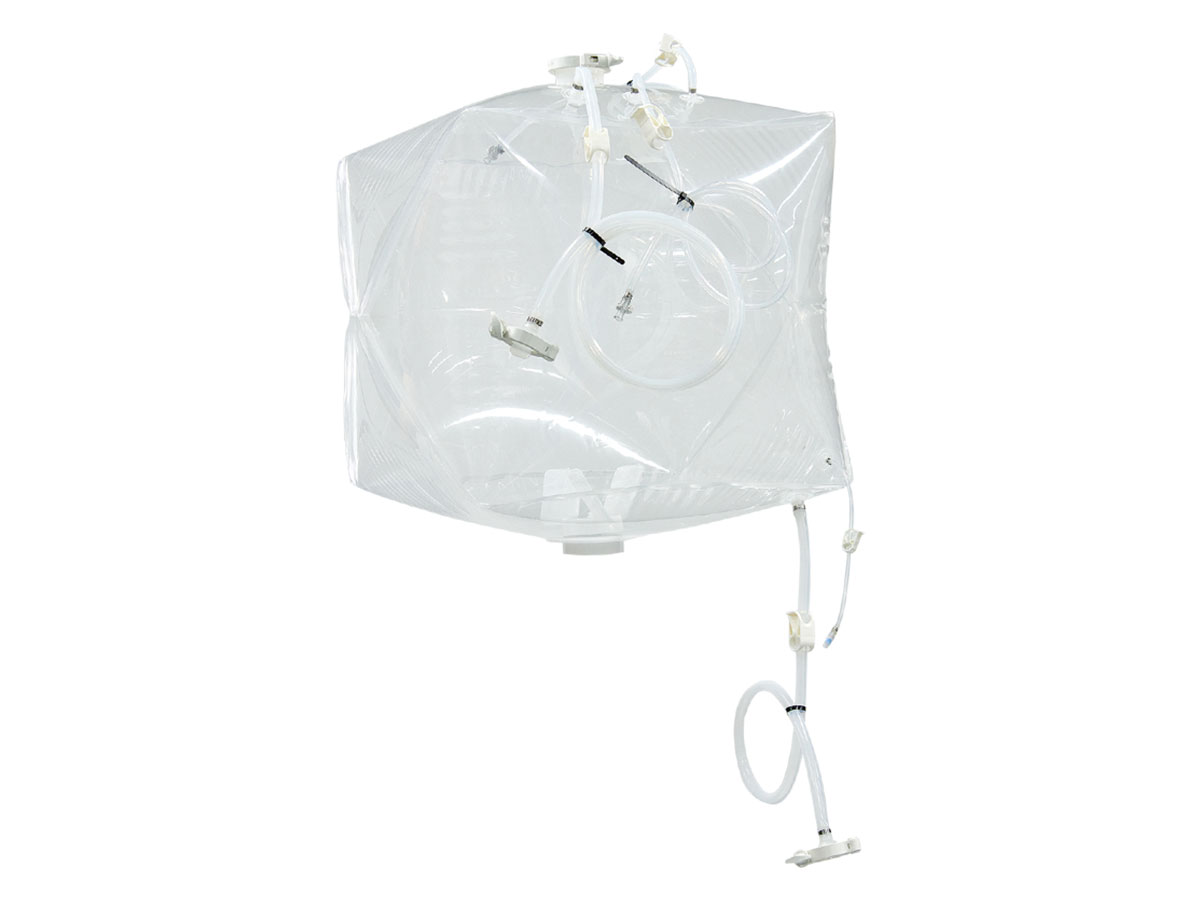

Single use Mixer bag (3D)

The Single-use Mixer Bag (3D) is developed and manufactured using Renolit PE film (Contact layer: ULDPE), with volumes ranging from 50 L to 1,000 L.
We also provide customized manufacturing services for transfer line connections on the container, tailored to on-site process requirements.

Applications

  • Suitable for upstream and downstream processes
  • Can be used for mixing buffers and media
  • Provides various tubing lines and customizable connectors
  • Supports installation of sampling ports and temperature/pH sensors
  • Customizable transfer line connections available
  • Tubing size, lengths, and connectors
  • Supports aseptic connection

Production

  • Clean Room Class 7 (10,000)
  • ISO 13485:2016 Certified
  • USP <85> Bacterial Endotoxins
  • USP <87> Biological Reactivity Tests – In Vitro
  • USP <88> Biological Reactivity Tests – In Vivo
  • Gamma irradiation: 25 kGy ~ 40 kGy
  • Extractable package available upon request
  • Double PE bag packaging (vacuum sealed)

Specification Data
Ecell-Single-use-v1_Catalog.pdf

Product No. Volume(L)
ESM0050ECS01 50L
ESM0100ECS01 100L
ESM0200ECS01 200L
ESM0500ECS01 500L
ESM1000ECS01 1000L

Standard configuration

  • Port 1(Top): Platinum-cured silicone tubing, ID1/2″ x OD3/4″, 500mm & Pinch clamp, MPX coupling insert connector + cap
  • Port 2(Top): Platinum-cured silicone tubing, ID1/2″ x OD3/4″, 500mm & Pinch clamp, MPX coupling insert connector + cap
  • Port 3(Top): Platinum-cured silicone tubing, ID1/2″ x OD3/4″, 500mm & Pinch clamp, MPX coupling insert connector + cap
  • Port 4(Bottom): Platinum-cured silicone tubing, ID1/2″ x OD3/4″, 1000mm & Pinch clamp, MPX coupling insert connector + cap
  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

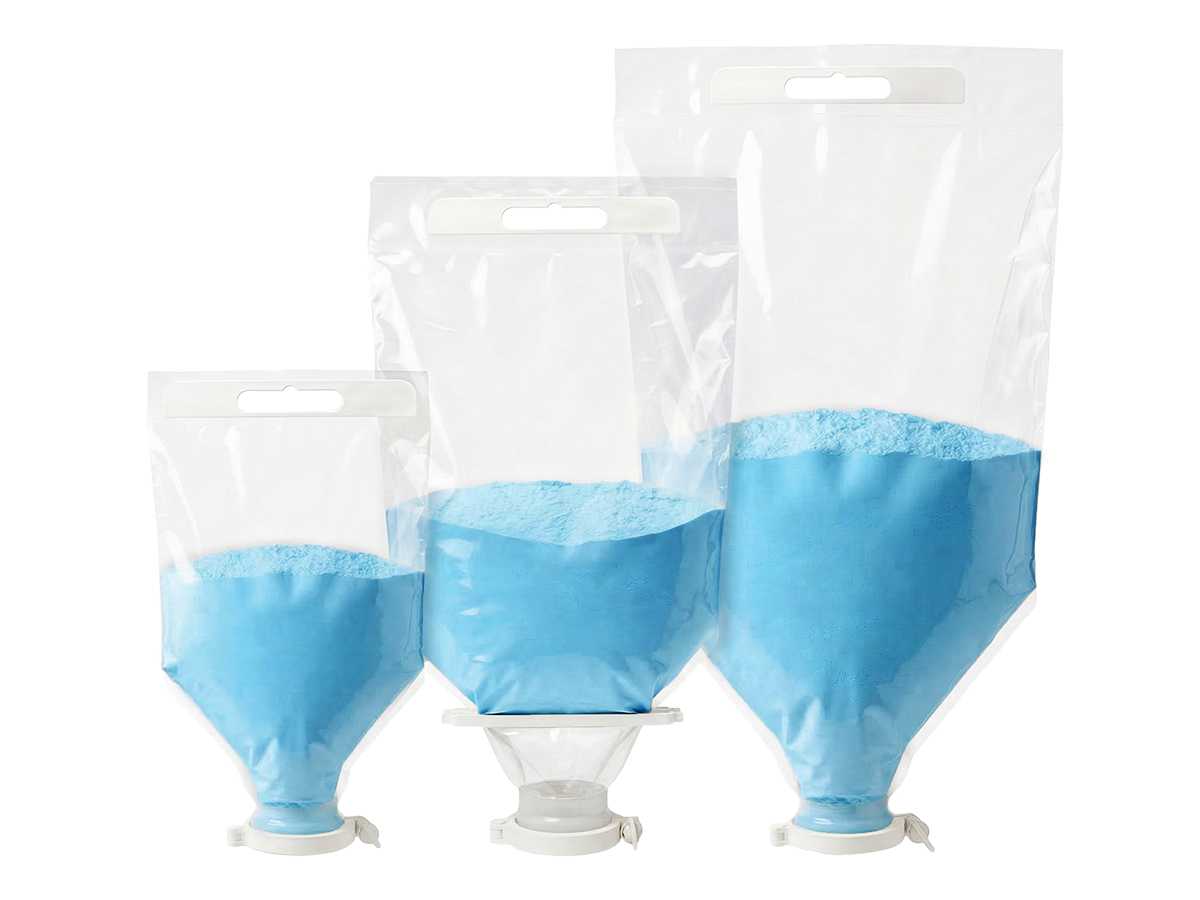

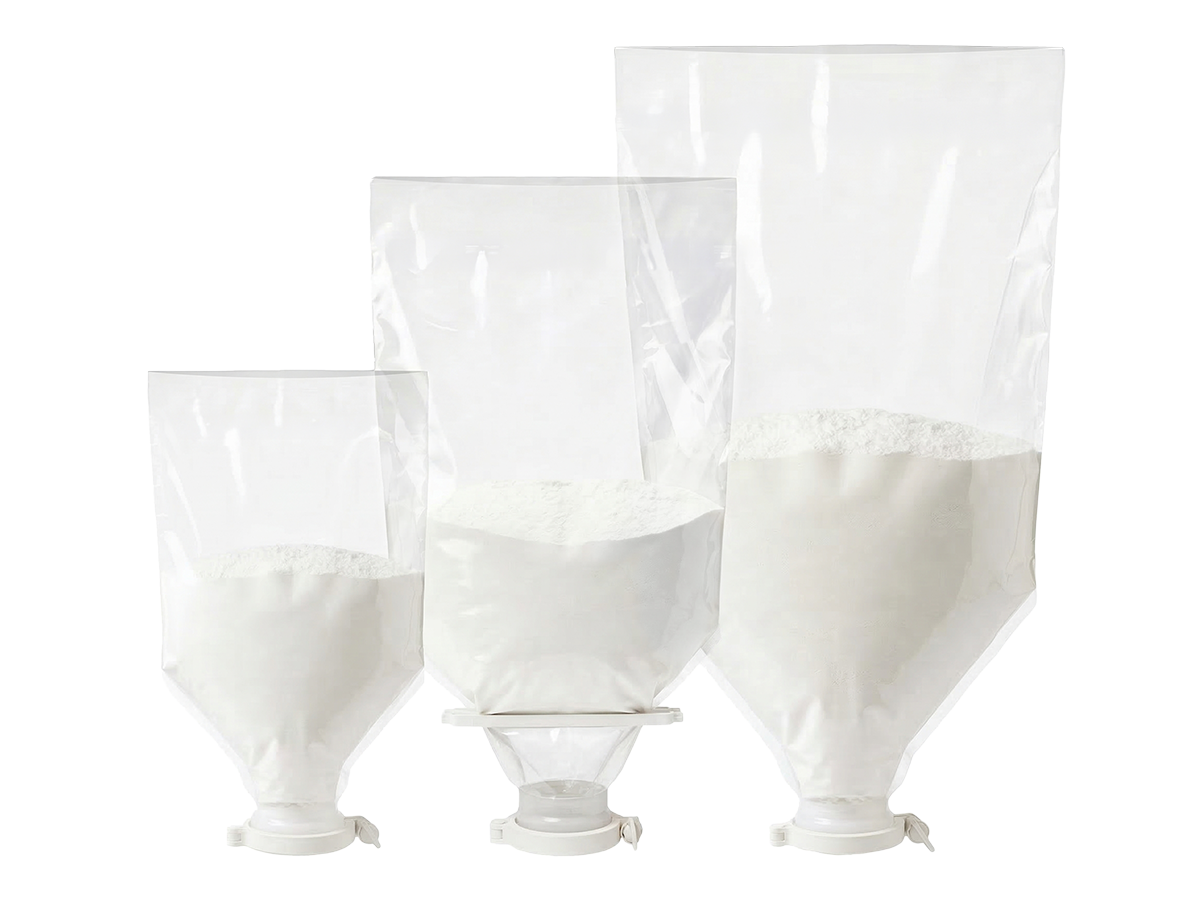

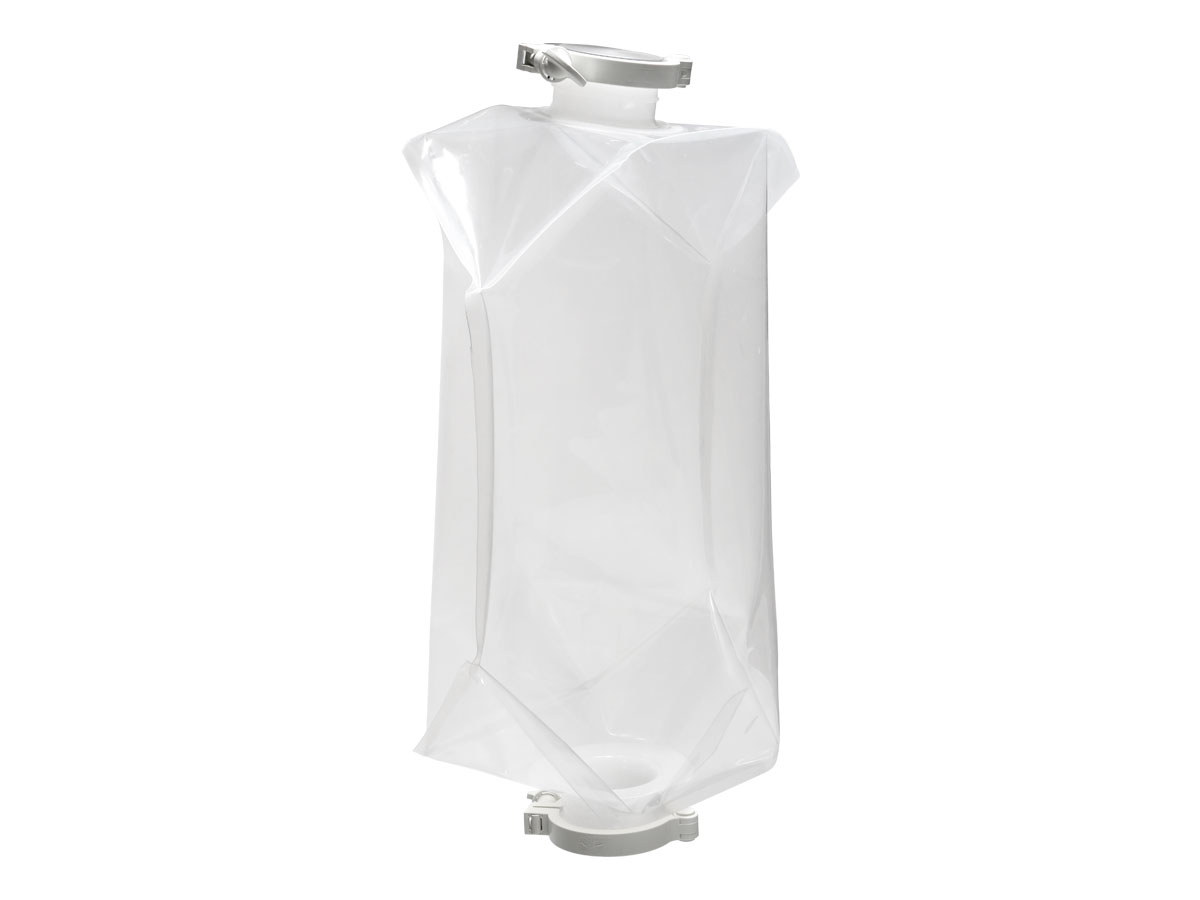

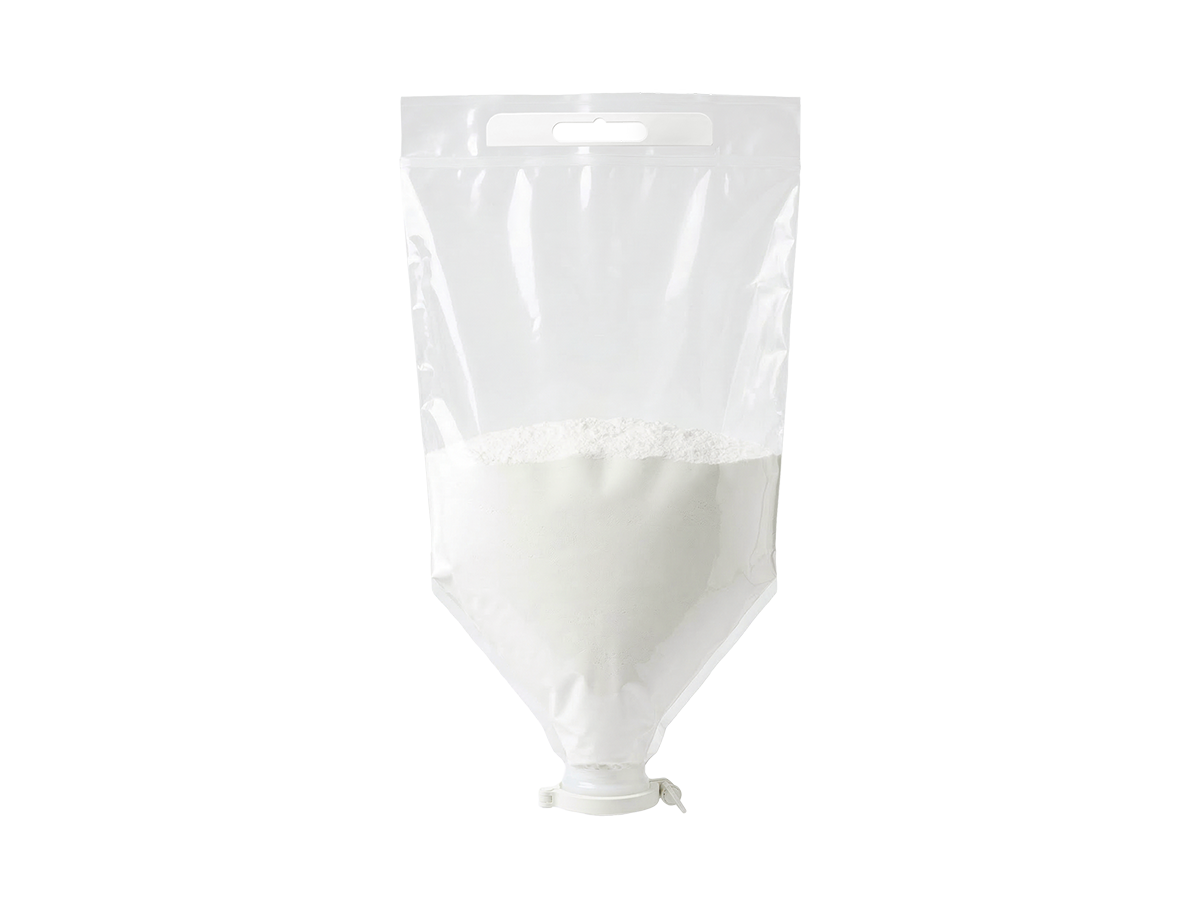

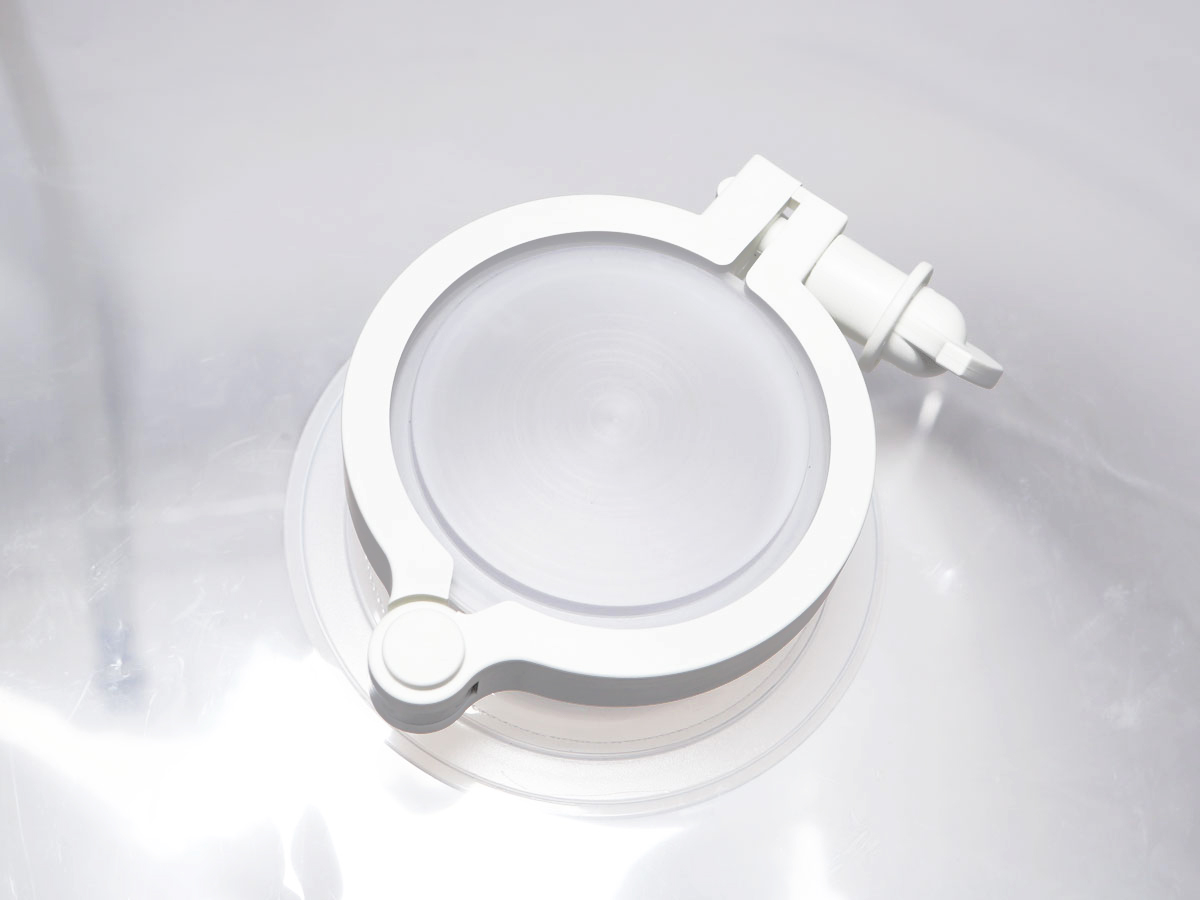

Single use Powder Bag

EPD Bag by Ecell is optimized for handling powder-type raw materials used in biopharmaceutical manufacturing. It is primarily used for weighing and aliquoting raw materials commonly applied in biopharmaceutical processes.
The bag film is treated with anti-static protection to prevent powder adhesion, minimizing residual material left inside the bag.

Applications

  • Storage and transfer of powder raw materials in bioprocesses
  • Designed for powder addition and dissolution during buffer and media preparation
  • Sealed design available to minimize dust and contamination during powder addition
  • Customizable powder-specific connection (Charge Port)

Production

  • Clean Room Class 7 (10,000)
  • ISO 13485:2016 Certified
  • LLDPE film (Anti-static)
  • BSE/TSE Certificate Available
  • Free from nitrosamines

Specification Data

Standard configuration.

  • 4S size port with PE cap
  • Plastic clip
  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

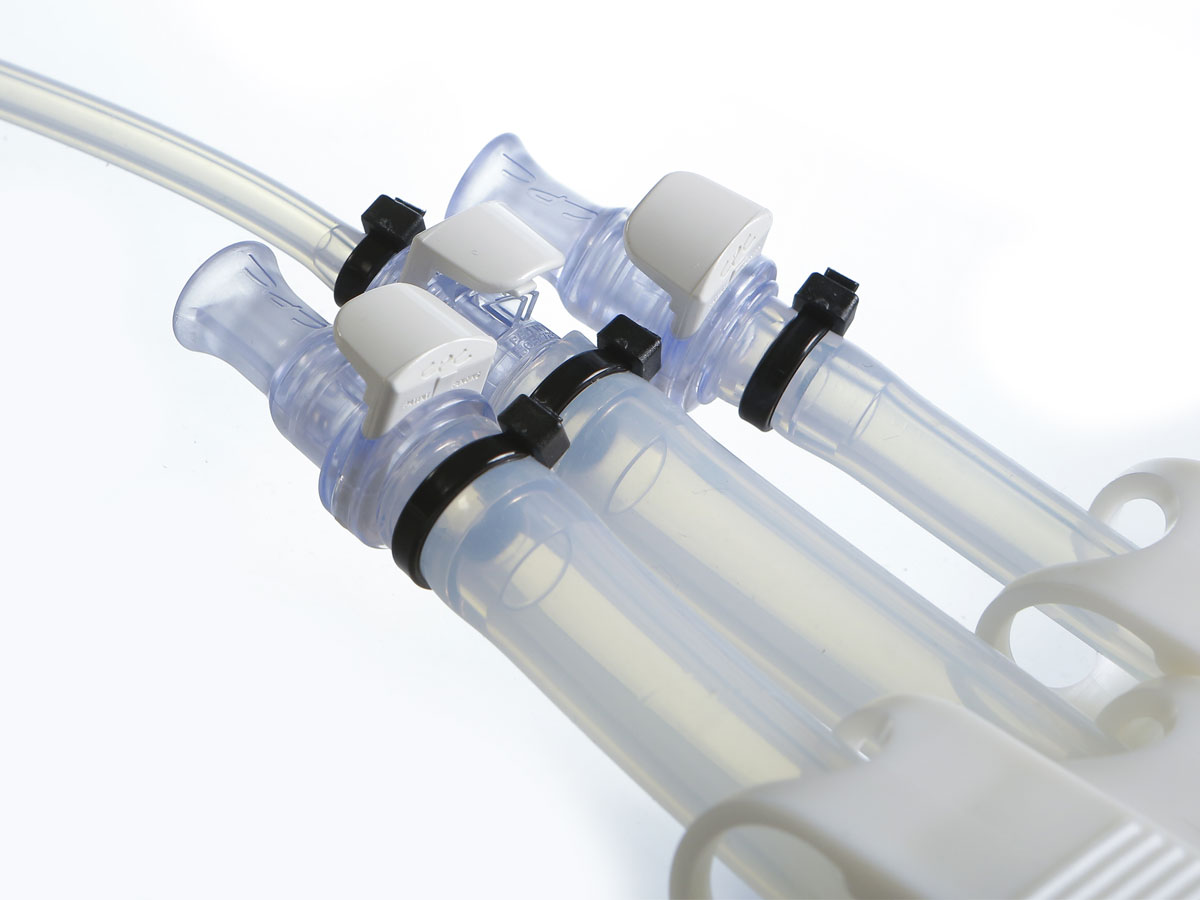

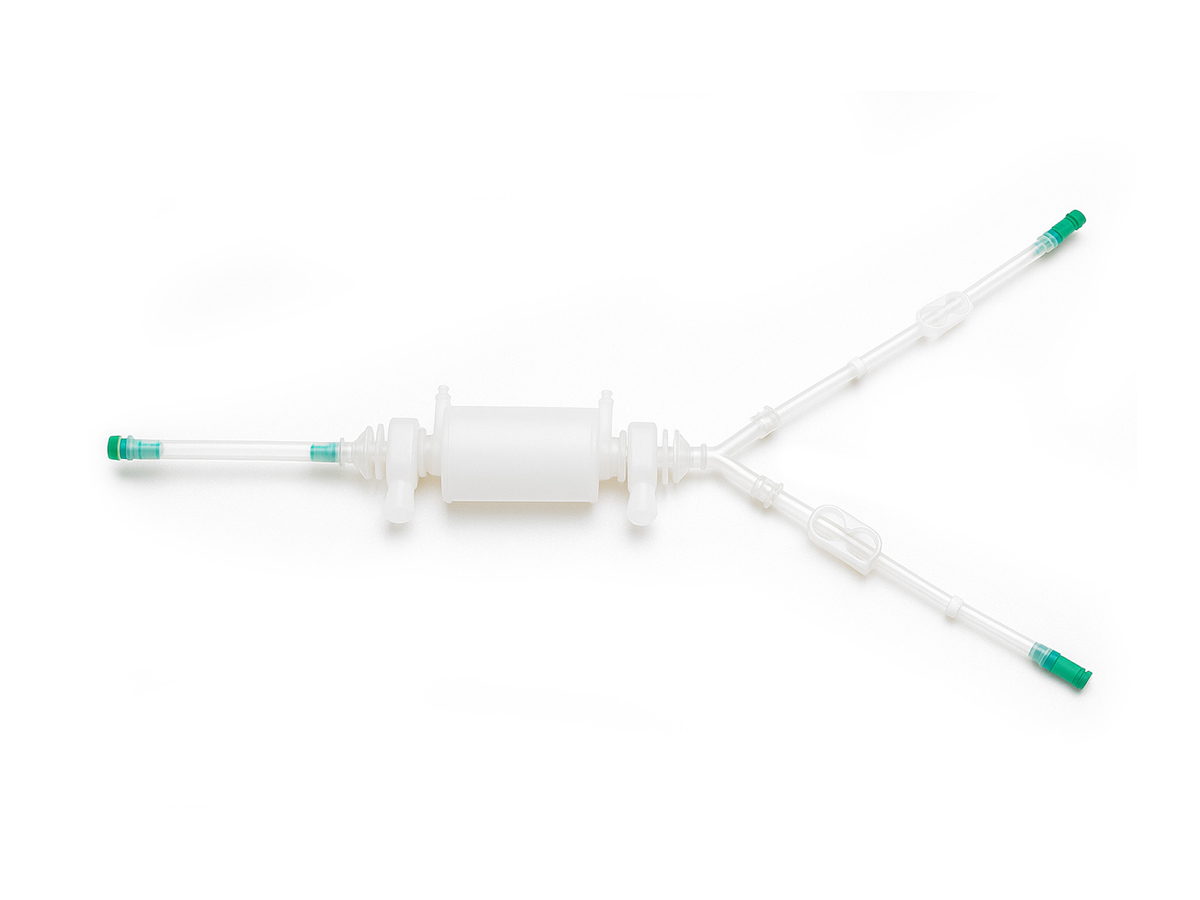

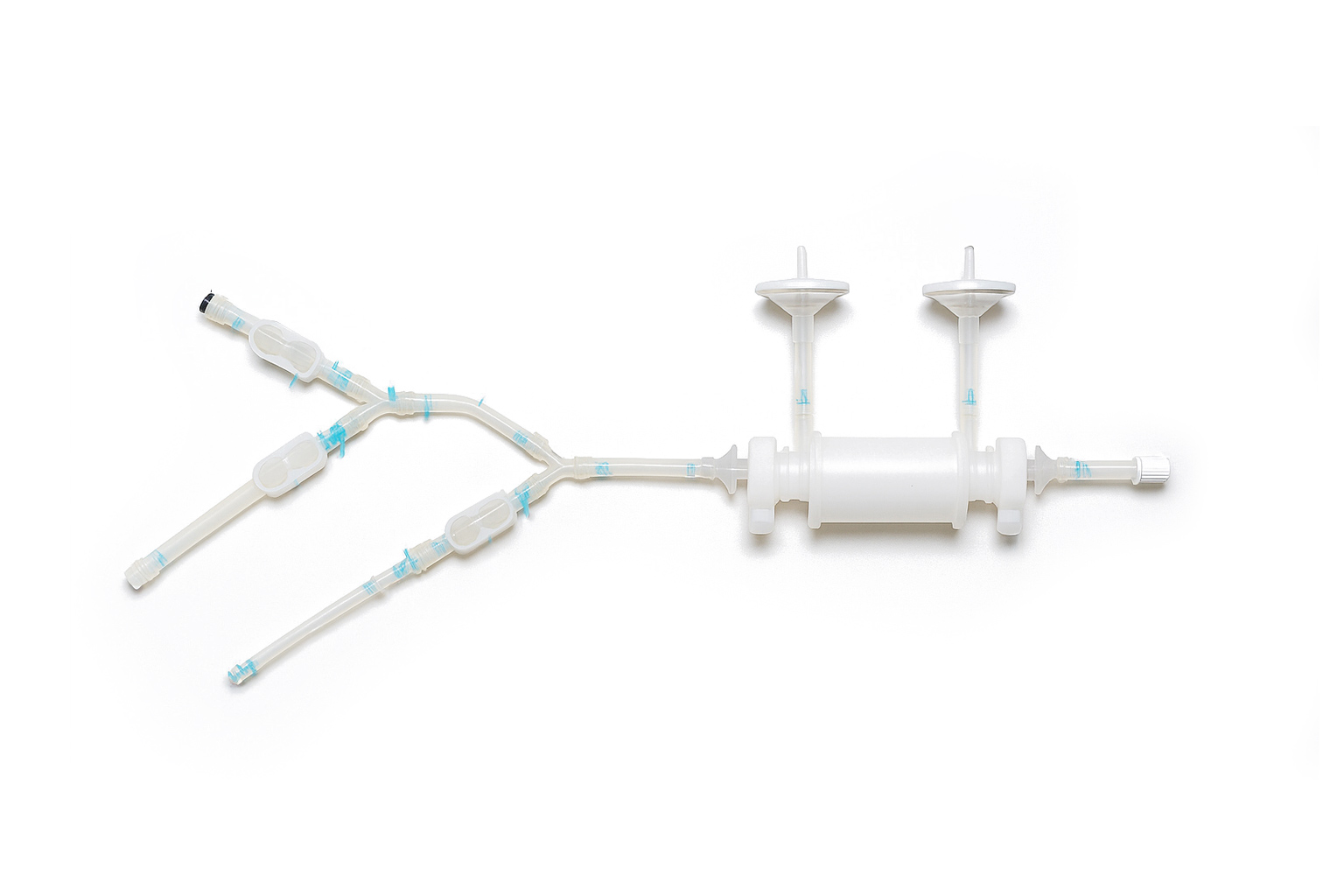

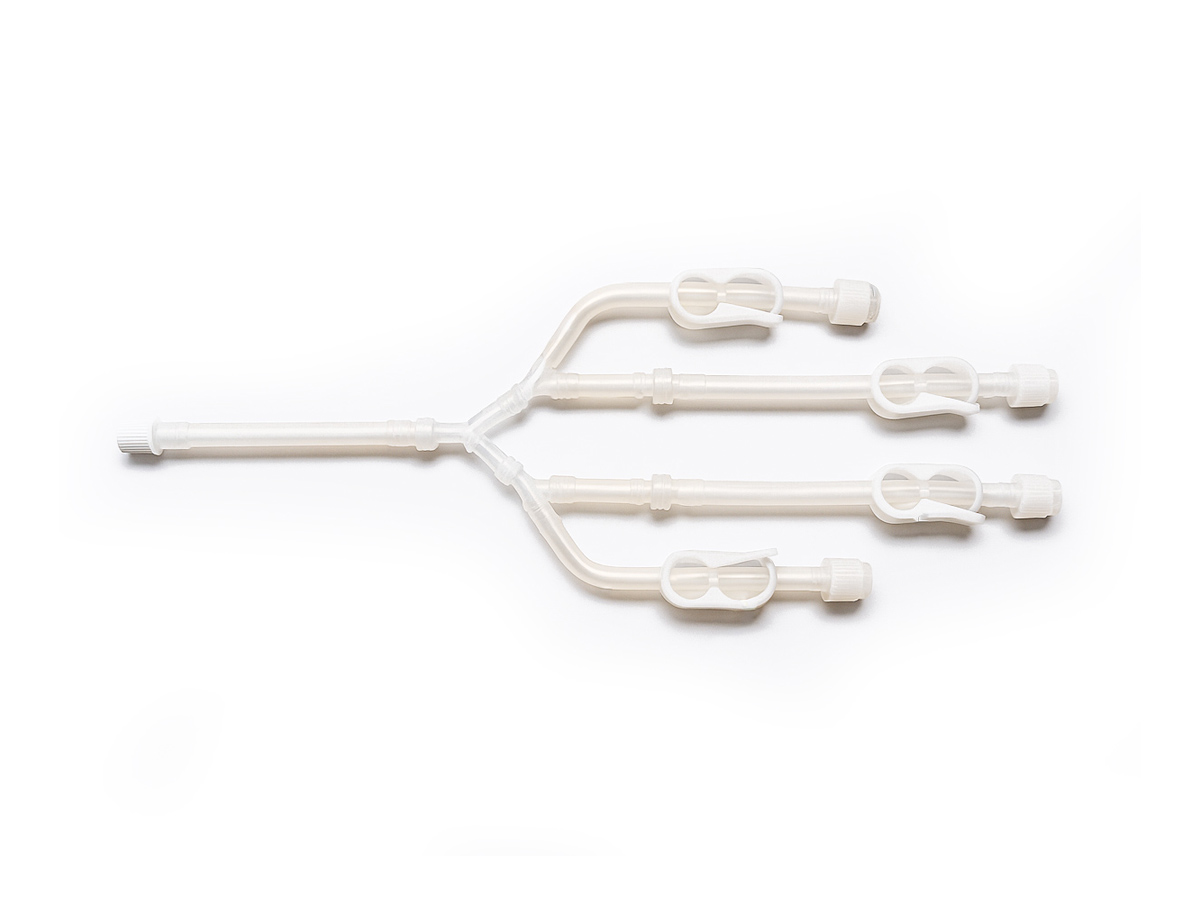

Tubing Assembly

Our tubing solutions are primarily designed for liquid transfer processes in the biopharmaceutical industry.
They can be customized to meet user requirements, including tubing material, length, filters, and connectors, and are mainly used in research and production for liquid filling, discharge, and transfer processes.

Applications

  • Customizable configuration (tubing size, lengths & connectors)
  • Supports aseptic connection
  • Filter assembly available
  • Transfer line can be custom-designed

Production

  • Clean Room Class 7 (10,000)
  • ISO 13485:2016 Certified
  • Gamma irradiation: 25 kGy ~ 40 kGy
  • Double PE bag packaging (vacuum sealed)

Specification Data

  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

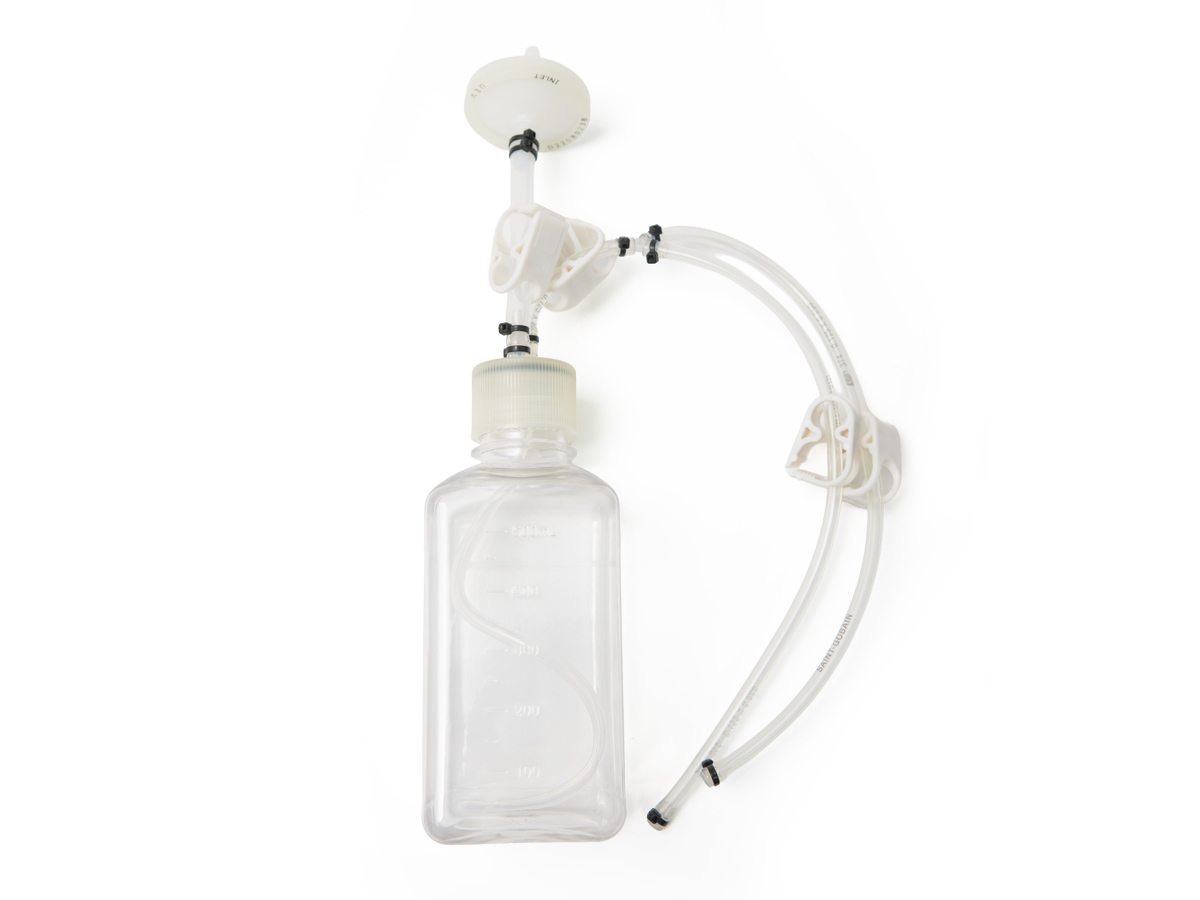

Bottle Assembly

We provide solutions for the storage and transport of liquids in the biopharmaceutical industry.
These systems can be customized according to user requirements, including tubing material, length, filters, and connectors, and are primarily used in research and production for buffer and media storage and transport processes.

Applications

  • Storage and transport of media/buffers
  • Storage and transport of raw materials/additives
  • Customizable configuration (tubing size, lengths & connectors)
  • Supports aseptic connection
  • Customizable transfer line design
  • Filter assembly available
  • Manifold design configurable

Production

  • Clean Room Class 7 (10,000)
  • ISO 13485:2016 Certified
  • Gamma irradiation: 25 kGy ~ 40 kGy
  • Double PE bag packaging (vacuum sealed)

Specification Data

Standard configuration

  • Port 1: Platinum-cured silicone tubing, ID 1/8” x OD 1/4”, 70mm & Pinch clamp, syringe filter
  • Port 2: C-flex(TPE) tubing, ID 1/8” x OD 1/4”, 500mm & Pinch clamp, plug
  • Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.
