Mixing System

SCROLL DOWN

EOM Model
ETM / EDM Model

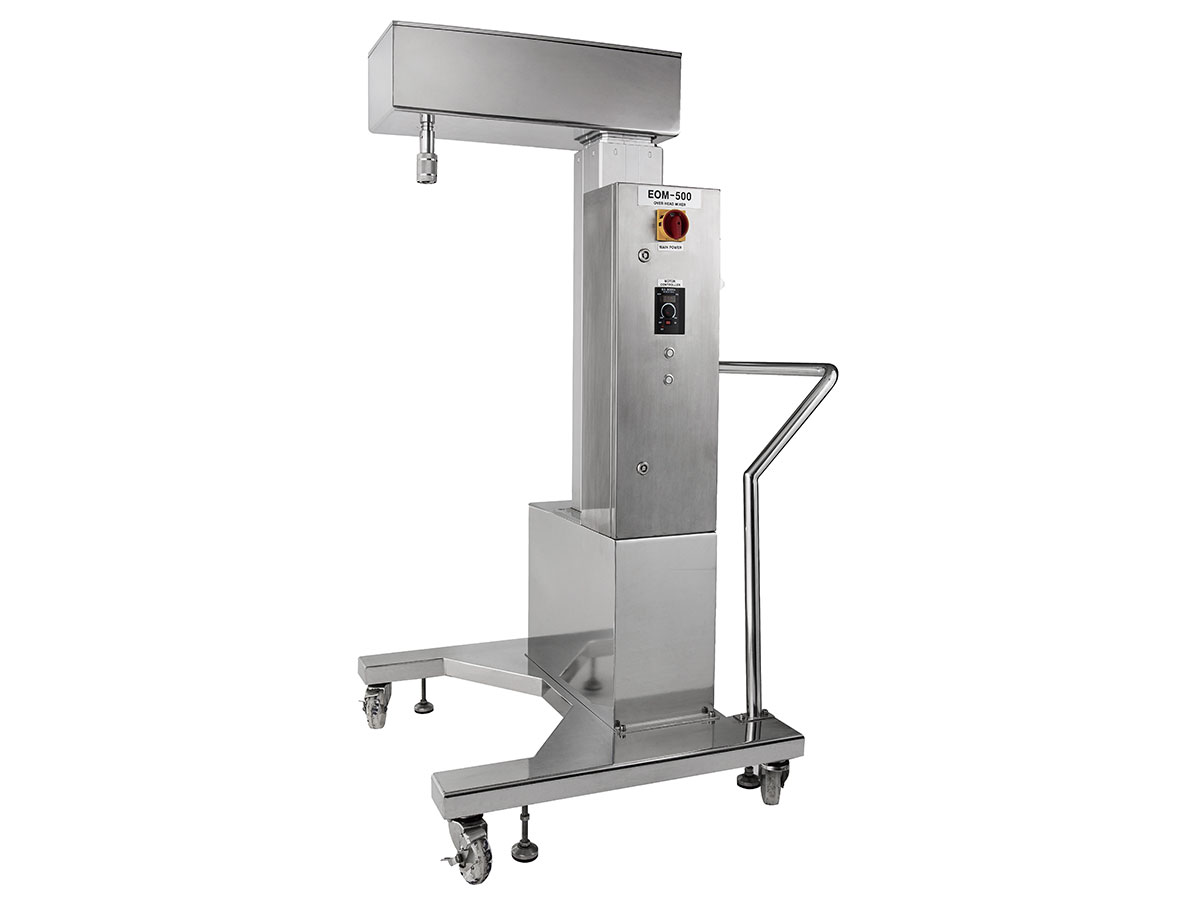

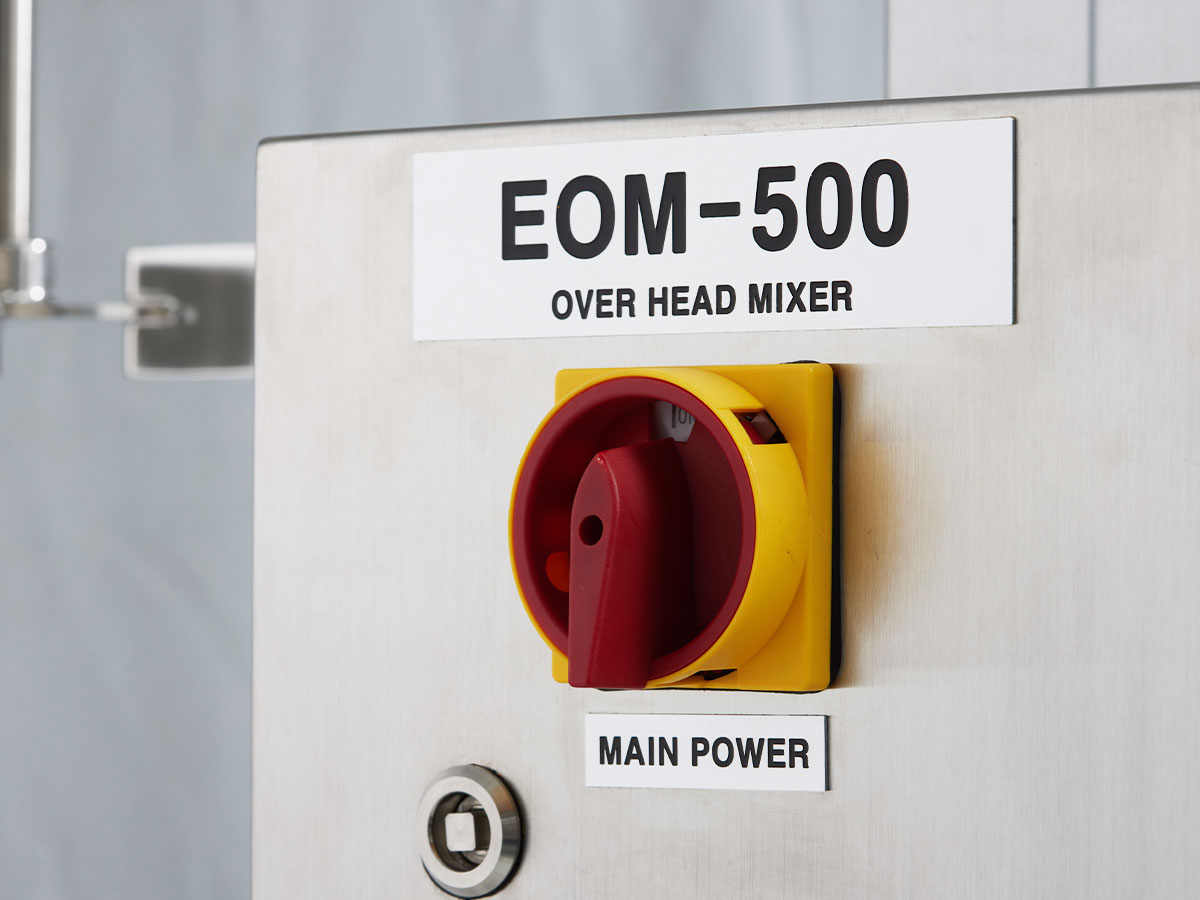

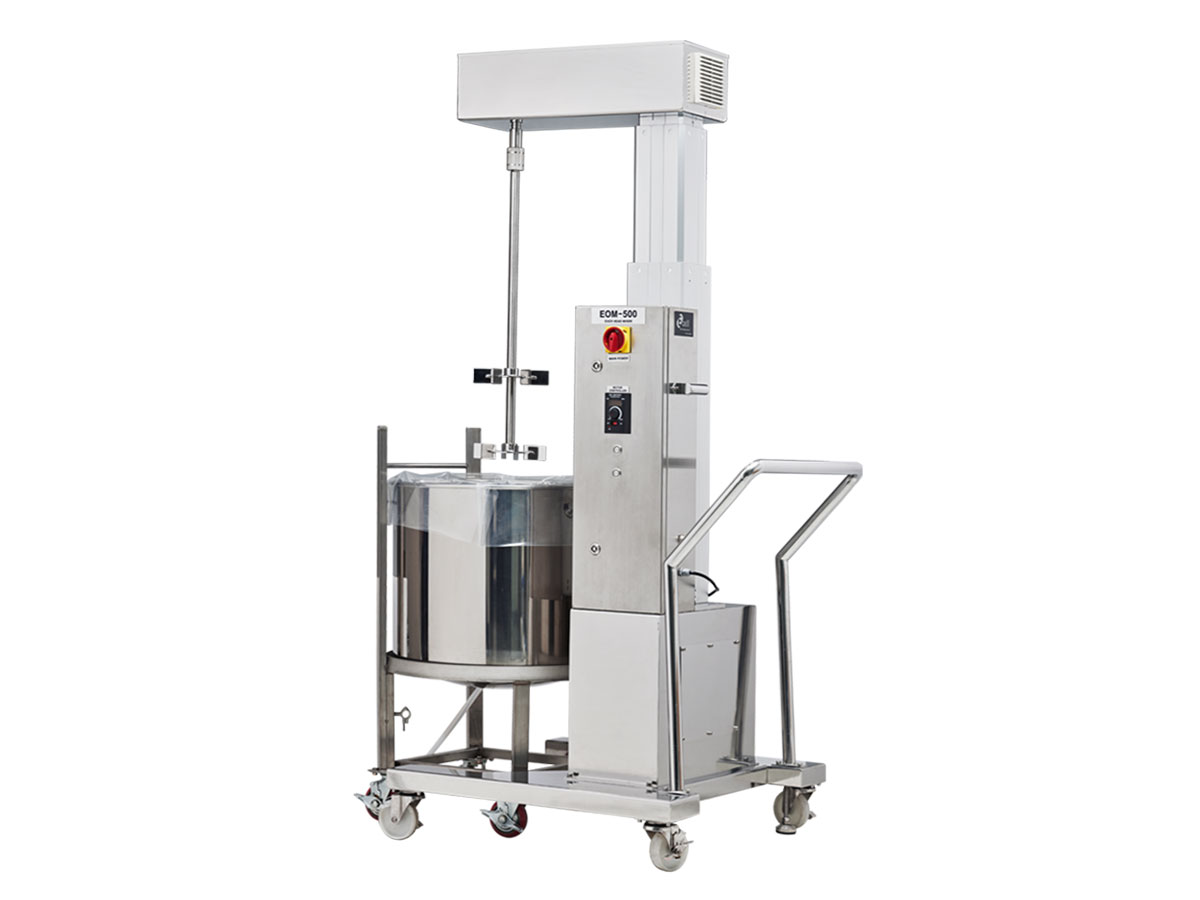

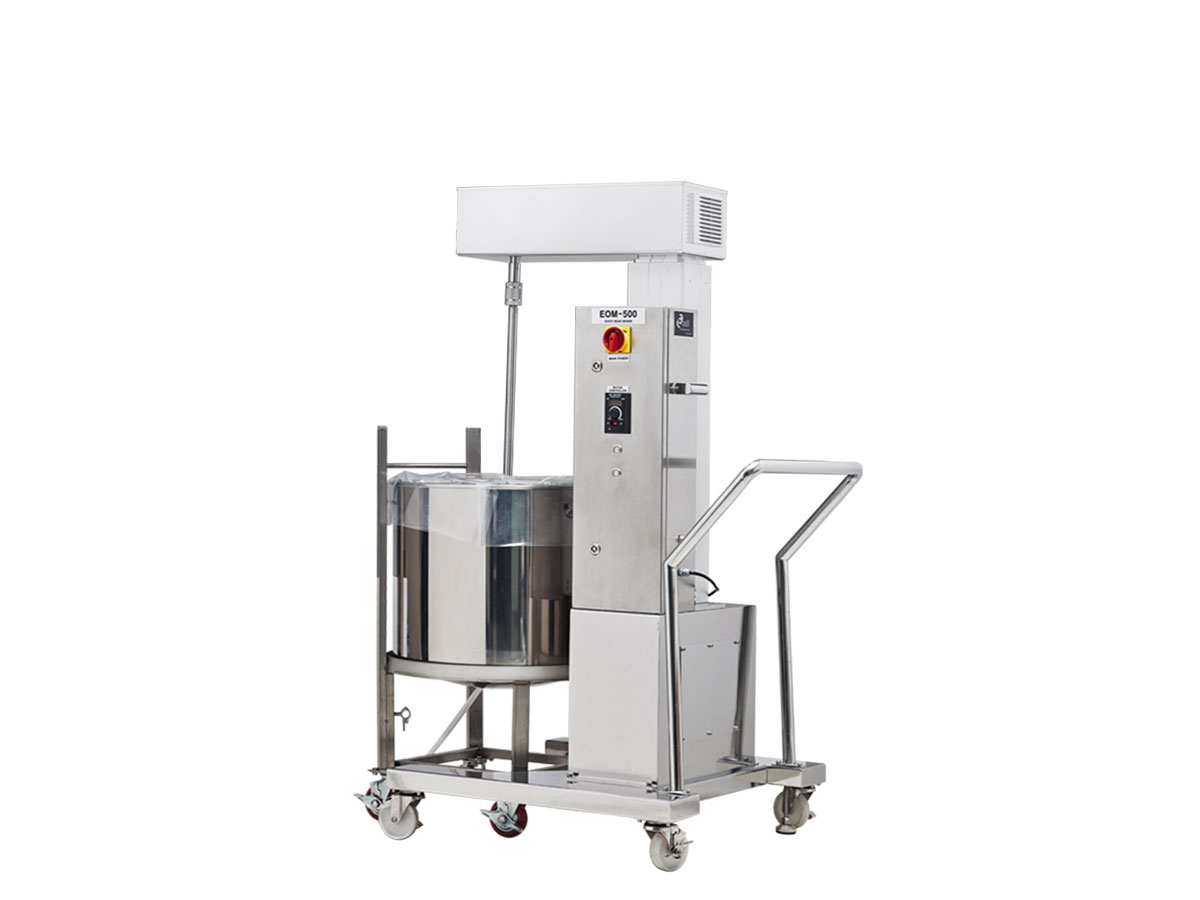

EOM OVERHEAD MIXER

The Overhead Mixer is commonly used in bioprocessing to efficiently mix a wide range of liquids and solids.

Applications

Buffer and media preparation/mixing
Biopharmaceutical manufacturing: vaccines, antibiotics, and biological products
Food industry: production of sauces, beverages, and fermented products
Environmental/industrial wastewater treatment: mixing in biological purification processes

Production

Materials
- Shaft: Stainless steel 316
- Impeller: Stainless steel 316
RPM: 20 ~ 200

Specification Data
2.SingleUse_Mixer_Bag_6P_압축본.pdf

Standard configuration

Volume : 100L ~ 300L
Overall Dimension(mm) : 885 x 960 x 2395

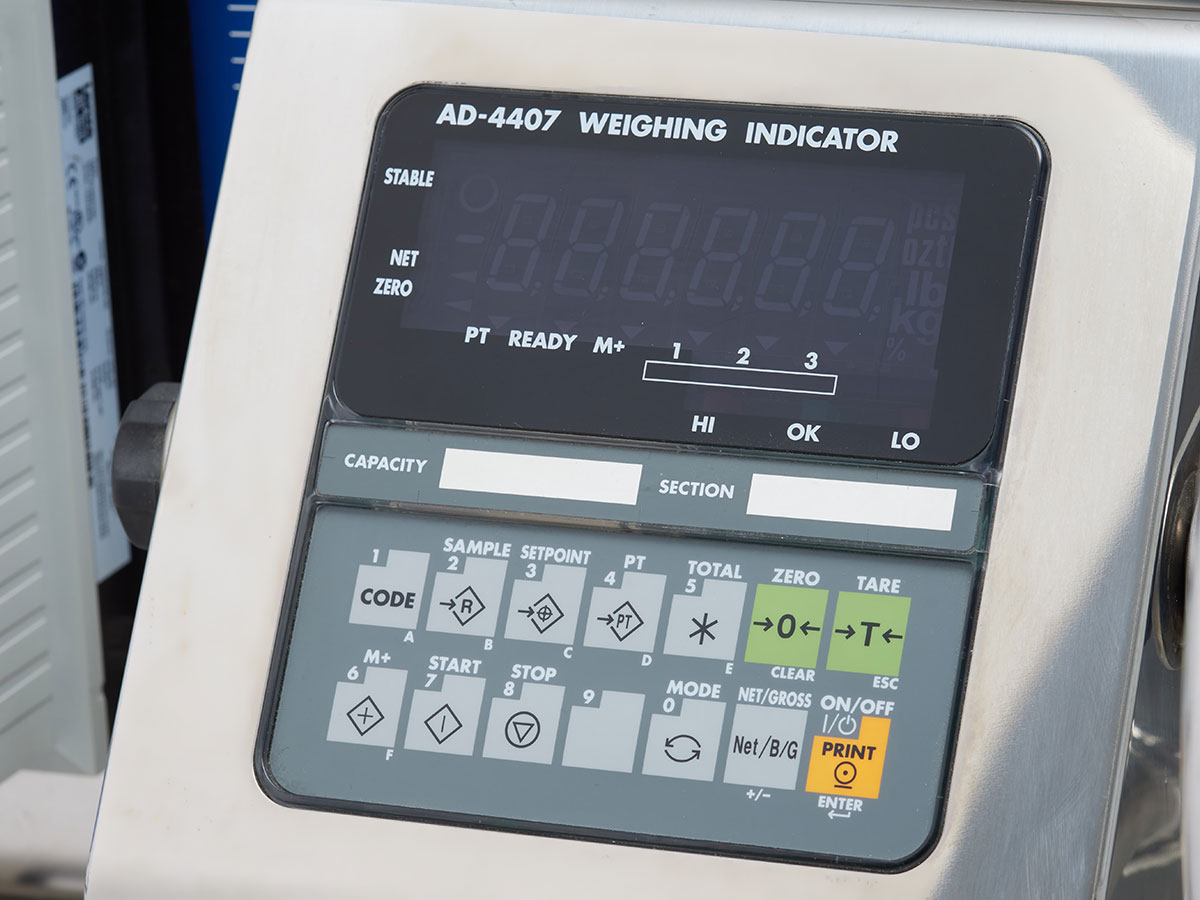

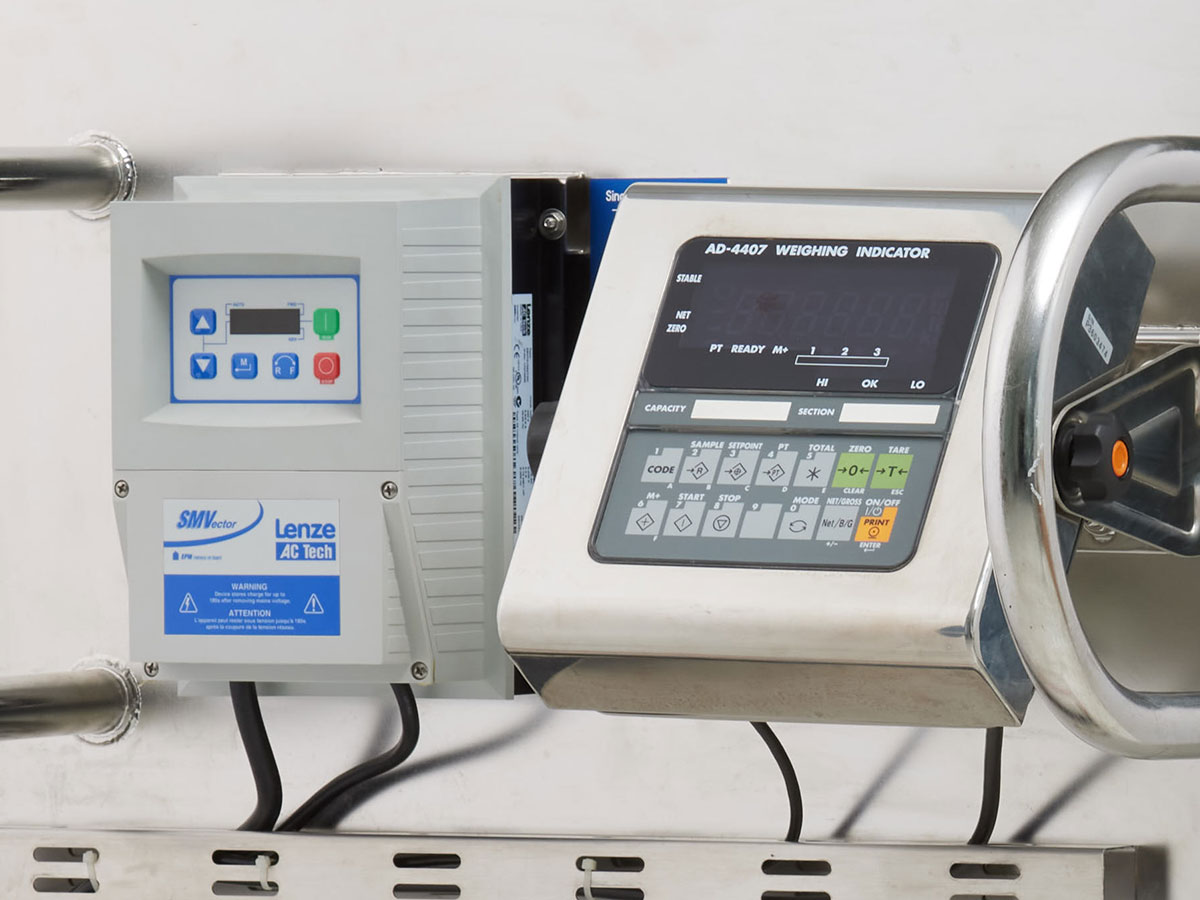

Load Cell Range : 0 ~ 300kg
RPM : 20 ~ 200 rpm
Motor Type : BLDC
Motor Rotation : Clockwise
Shaft Type : Detachable coupling , SUS316

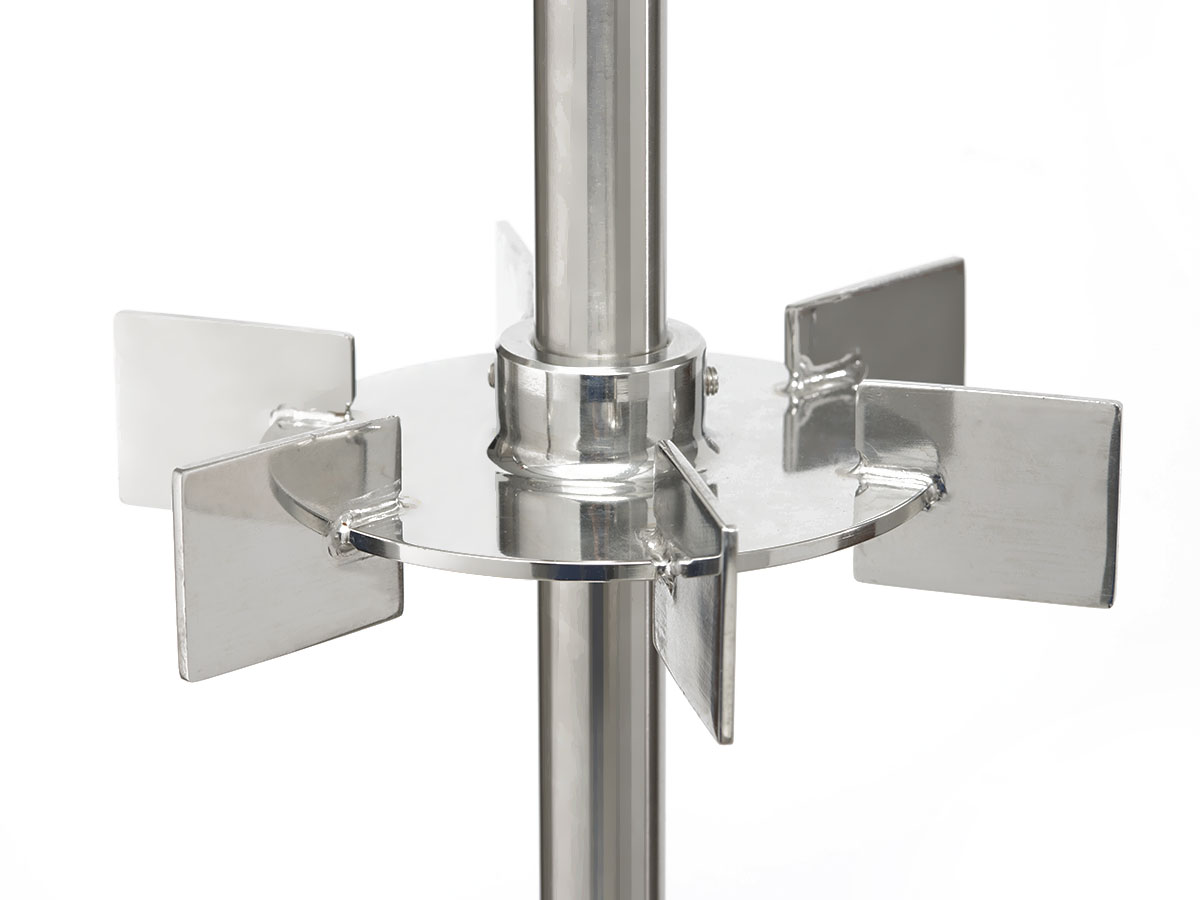

Impeller Type : Rushton impeller x 2EA , SUS316

Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.

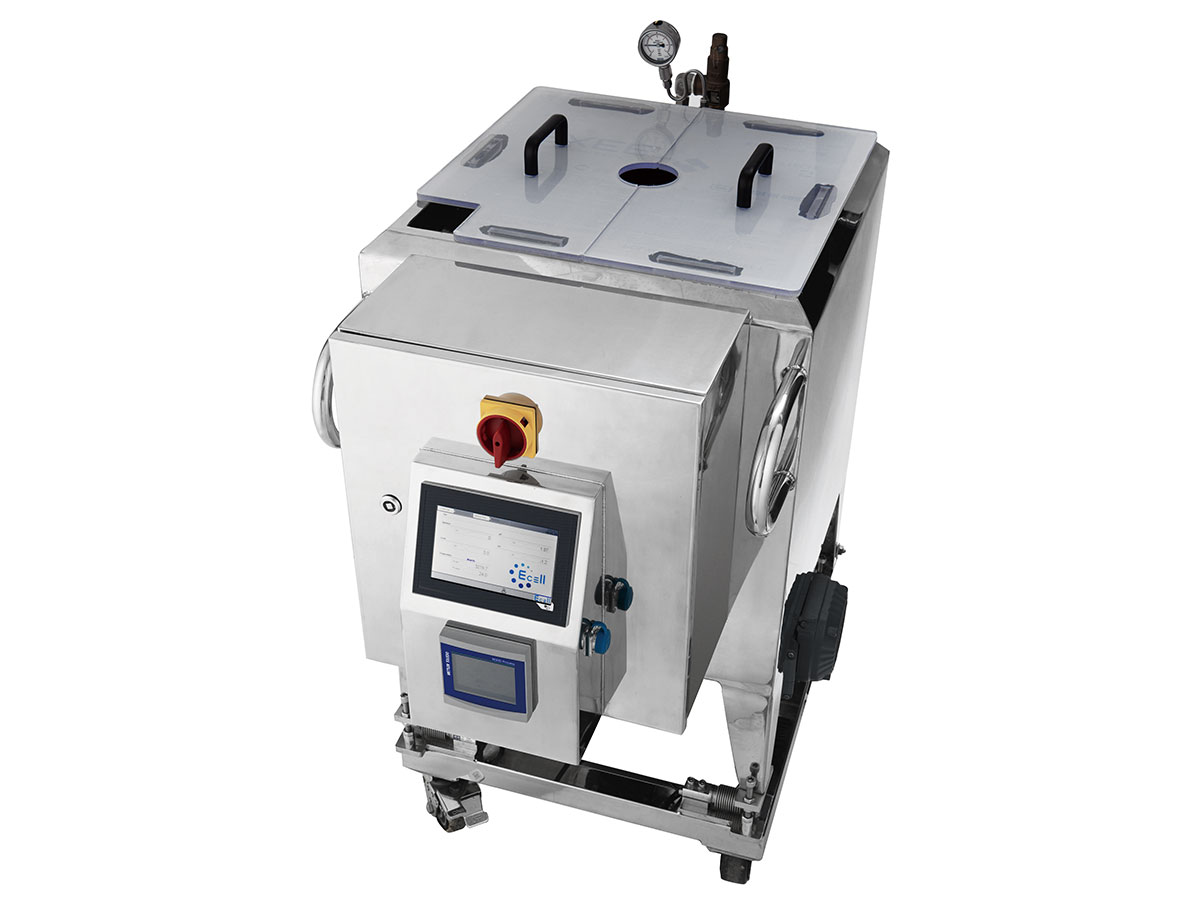

ETM / EDM MIXER

The Mixing System is designed for mixing and processing in biological or chemical reactions. The ETM/EDM system aims to achieve optimal productivity through efficient mixing and reaction performance.

Applications

Applicable to both upstream and downstream processes
Suitable for buffer and media preparation/mixing

Production

Materials: Stainless steel 304
Volume: 16.5 ~ 1000(L)
RPM: 20 ~ 200 or 40 ~ 400 (Differential rpm speed - depend on Impeller size)

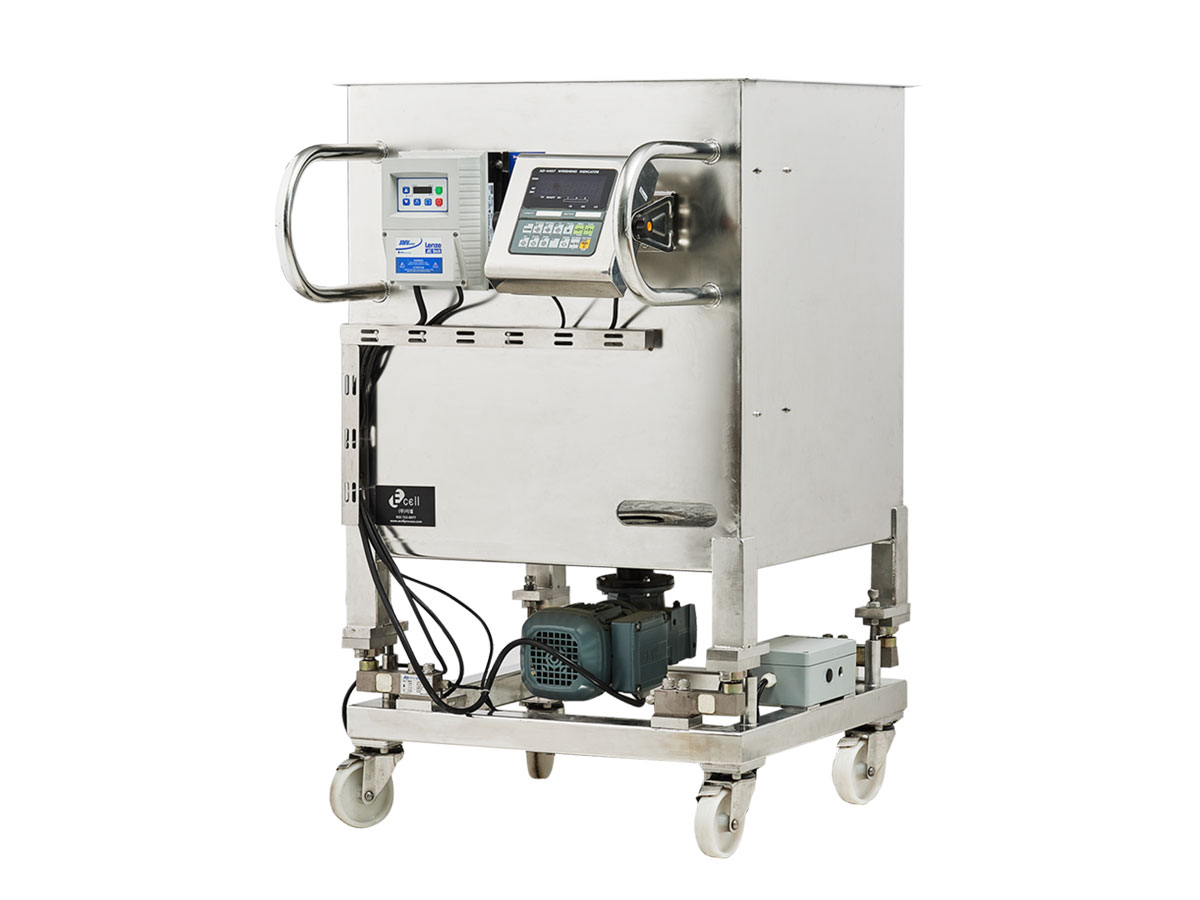

ETM Model
1) Temperature data logging not included
2) Single(Non) Jacket type

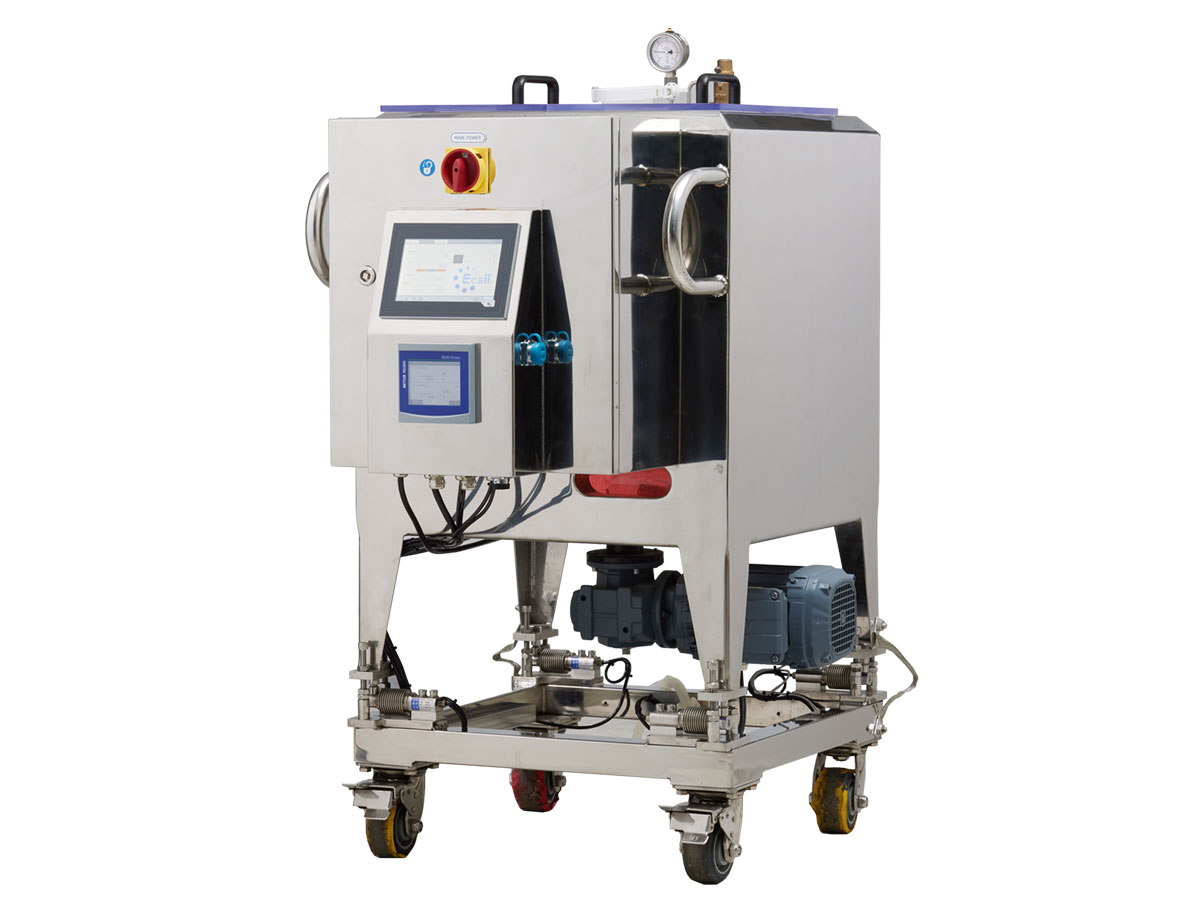

EDM Model

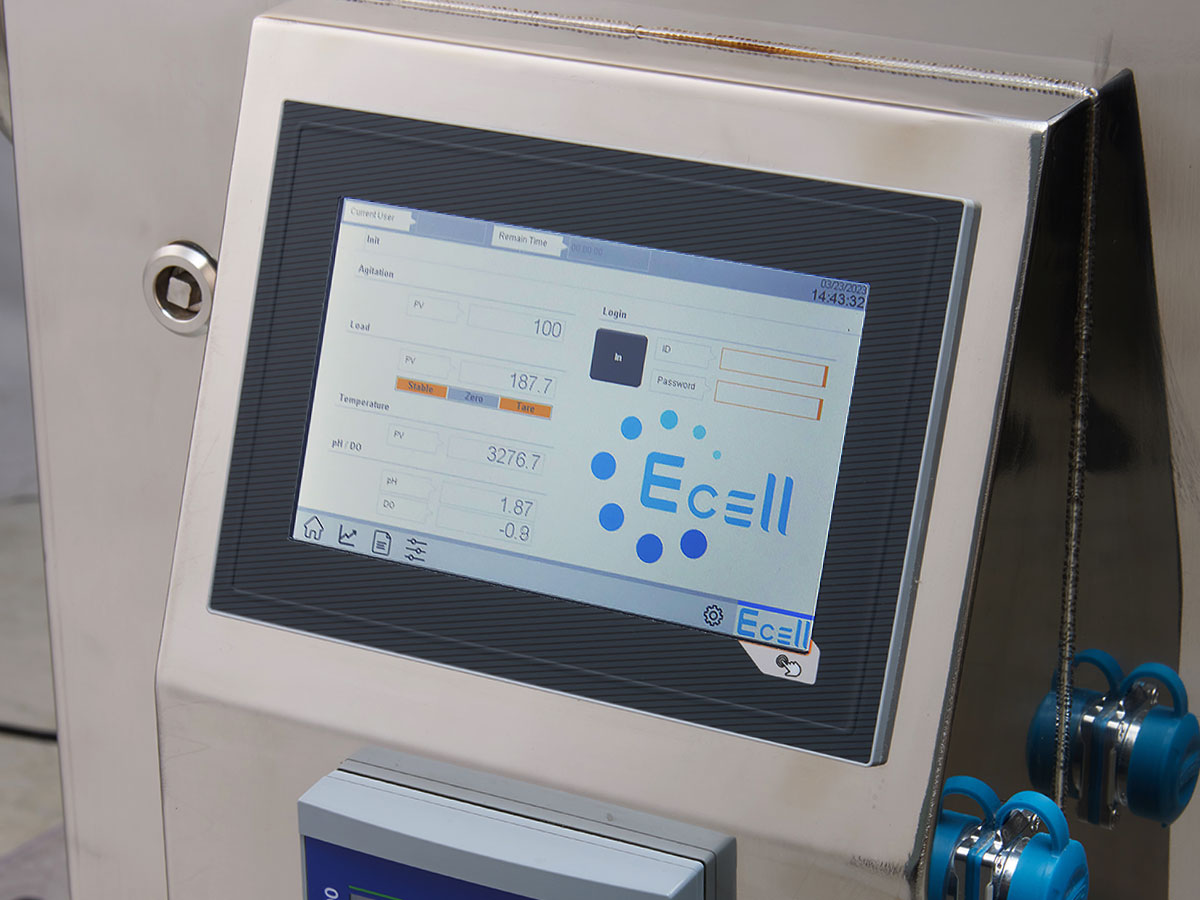

1)Temperature data logging included
2) Double Jacket type

Specification Data
2.SingleUse_Mixer_Bag_6P_압축본.pdf

SINGLE & JACKET TYPE	Volume(L)
Single use bag mixer – Single Wall / Jacketed Type	16.5 L
Single use bag mixer – Single Wall / Jacketed Type	50 L
Single use bag mixer – Single Wall / Jacketed Type	100 L
Single use bag mixer – Single Wall / Jacketed Type	200 L
Single use bag mixer – Single Wall / Jacketed Type	500 L
Single use bag mixer – Single Wall	1000 L

Standard configuration

Materials : Stainless steel 304
Main Control Panel Dimension : 380 x 420 x 295 (mm)
Motor type : AC Gared Motor
RPM : 20 ~ 200 rpm or 40 ~400 rpm
Motor Rotation : Counter Clock wise direction
Electrical : AC 220V, 50/60Hz, 1phase 6A

Notice We can review any customized configuration you require. For more detailed product consultation, please contact us directly or submit an inquiry through the online inquiry form.
